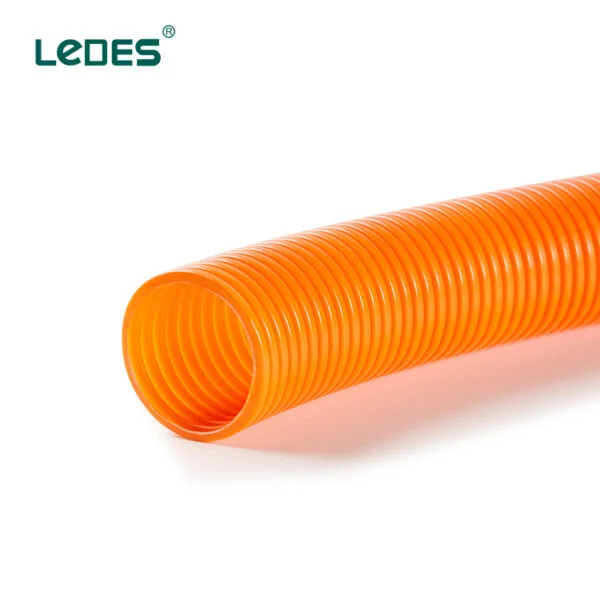

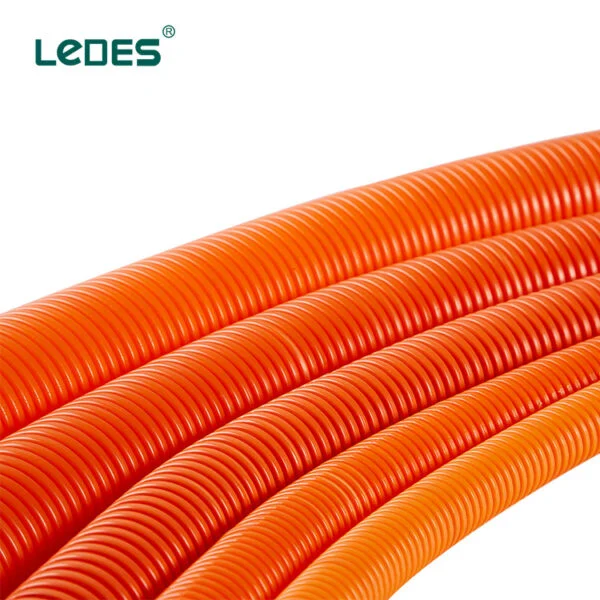

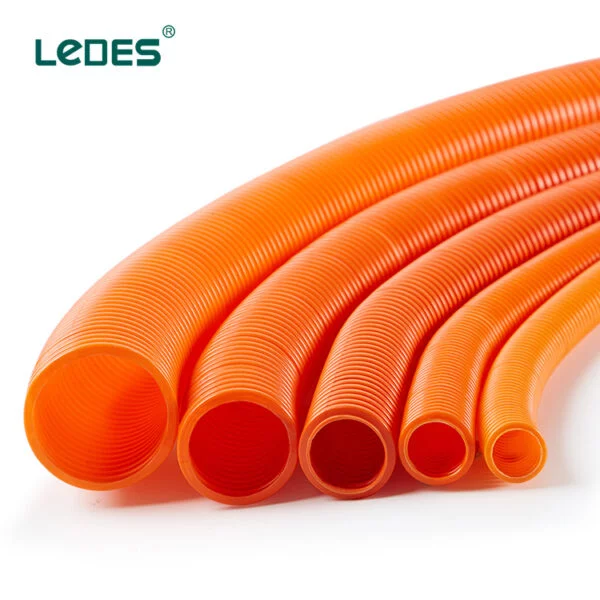

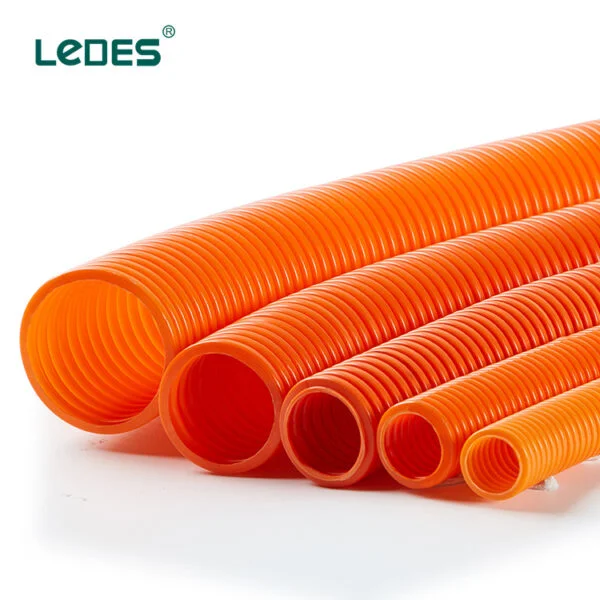

Ledes Flexible PVC Pipe Electrical Corrugated Conduit Pipe Waterproof & UV Resistant - Orange

Compatible Standard



AS/NZS 2053

EN 61386

UL94

ISO 9001:2015

Ledes AS NZS 2053 Certified Conduit & Fittings

Features

Design for AU Market. Designed for Australian market, 100% compliance project requirements and certified by AS/NZS 2053 And EN 61386.

Non – Metallic Conduit. Electronic & heat insulation, light weight, long lasting and rustproof. Which are pros comparing with metallic corrugated electrical conduit.

High Fire Rating. Up to V0 fire rated means the flame will self-extinguishing in 5s after cut off the source of fire for provided the best protection for your home & office.

UV Resistance. Excellent UV resistant performance, perfect match with outdoor installation and suitable for outdoor project.

Trusted Partner. 15+ huge construction projects core supplier over the world and services hundreds of companies in US & CA & AU & UAE & SA.

Full Customized Service. Not only size and colour of products, but we can offer total solutions for your project based on our rich industry experience.

Overview

Ledes Australian standard corrugated plastic tubing can be divided into 2 different types named medium duty and heavy duty based on your project. The manufacture of electric wire corrugated pipes or tubes seems to be easy, but in fact, it must be takes effort to meet relevant environmental protection requirements.

Starting with raw materials, Ledes resolutely resists the use of recycled materials for reprocessing, and we insist on using 100% brand new materials for production. In addition, we use high-quality additives and auxiliaries imported from the United States to ensure that product performance can always be maintained at its best. At the same time, in the production process, we strictly follow the production process to produce qualified products. The quality department controls the quality based on production line station inspections and random inspections of finished products to ensure that the products are qualified before we shipped to customers.

In addition, Ledes has launched high freedom customized service. In addition to the conventional color, wall thickness and other parameters, we can also design and mold products according to customer requirements to 100% meet customer needs.

Product Description

Why You Need AS & IEC Approved Flexible Electrical Conduit?

Design for AU Market

We have experienced designer team for developing different kind of electrical conduits and accessories, and the flexible cable conduit and fittings based on customer needs of Australia. Comply with relevant standards.

Non - Metallic Conduit

In addition to lightweight and cost effective, non metallic flexible conduit are also rust-proof and insulated. Considering the PVC is natural insulator, which can ensure the safety of your life and property in an accident.

High Fire Rating

Ledes electrical flexible pipe with V0 fire resistance rating can be self-extinguished in 5s after cutting off the fire source, which greatly improved the safety of life and property.

UV Resistance

Excellent UV resistant performance, perfect match with outdoor installation and suitable for outdoor project.

Performance



Product name

PVC Flexible Conduit

Color

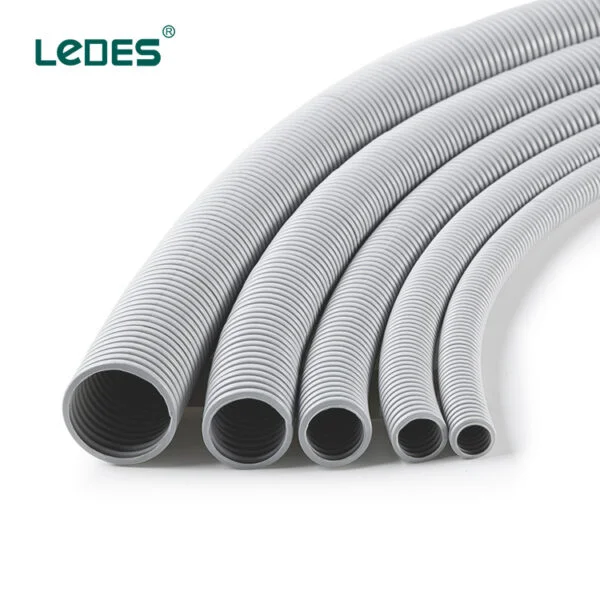

Orange, Gery or customized

Resistance to Compression

1,250Nt/5cm

Fire Rating

V0

UV Resistance

Yes

Size

20mm/25mm/32mm/40mm/50mm/63mm

Thickness

Customized

Temperature Range

-15℃ to +105℃

Usage

Electrical Wire Protection

Bendable

High Flexibility

Material:

PVC

Place of Origin:

Dongguan, China

Shipping:

By sea

Samples:

Available

Packing

Coils or Reels



Properties



Products Code

Type

Unit

Length(m)

PKG

LE- HDCCY2010

¢20

ROLL

10

Customized

LE- HDCCY2020

¢20

ROLL

20

Customized

LE- HDCCY2050

¢20

ROLL

50

Customized

LE- HDCCY2510

¢25

ROLL

10

Customized

LE- HDCCY2520

¢25

ROLL

20

Customized

LE- HDCCY2550

¢25

ROLL

50

Customized

LE- HDCCY3210

¢32

ROLL

10

Customized

LE- HDCCY3225

¢32

ROLL

25

Customized

LE- HDCCY4010

¢40

ROLL

10

Customized

LE- HDCCY4025

¢40

ROLL

25

Customized

LE- HDCCY5010

¢50

ROLL

10

Customized

LE- HDCCY5025

¢50

ROLL

25

Customized

LE- HDCCY6325

¢63

ROLL

25

Customized



Remarks: can be customized thickness and color
