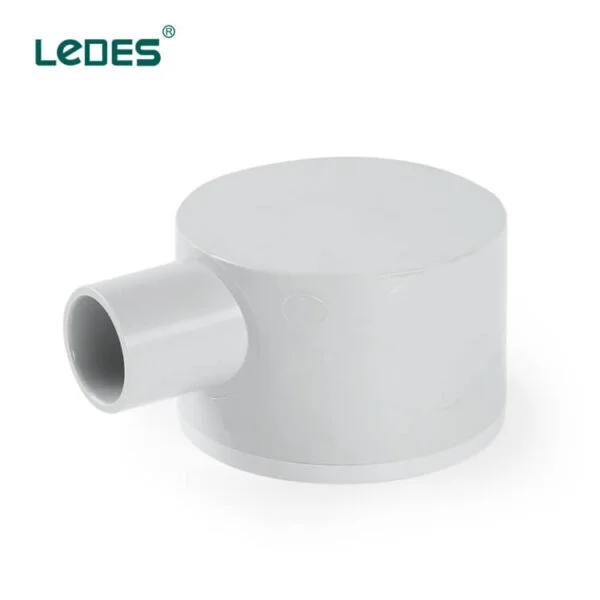

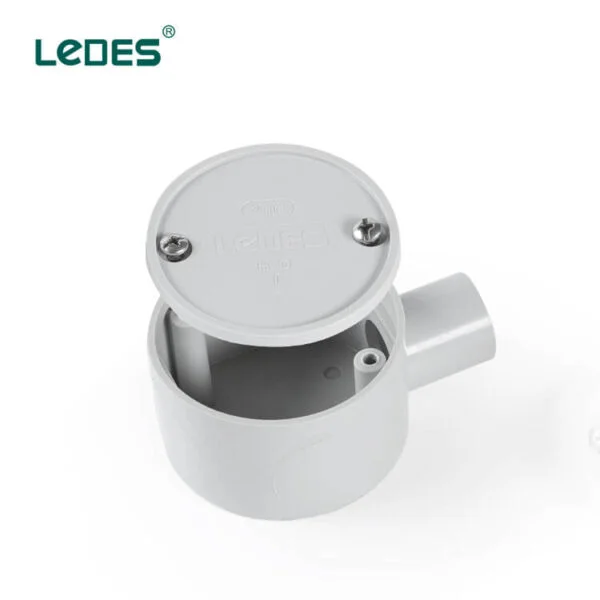

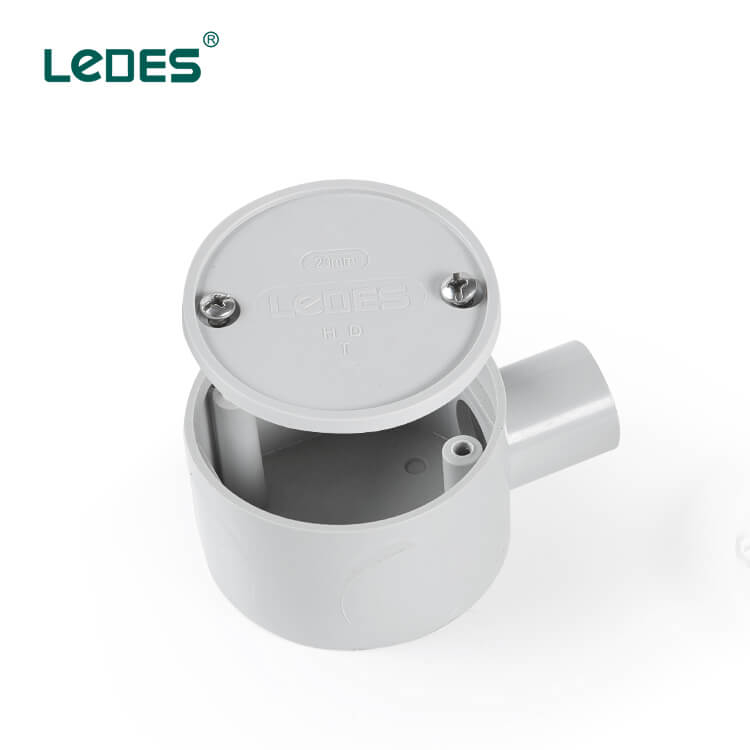

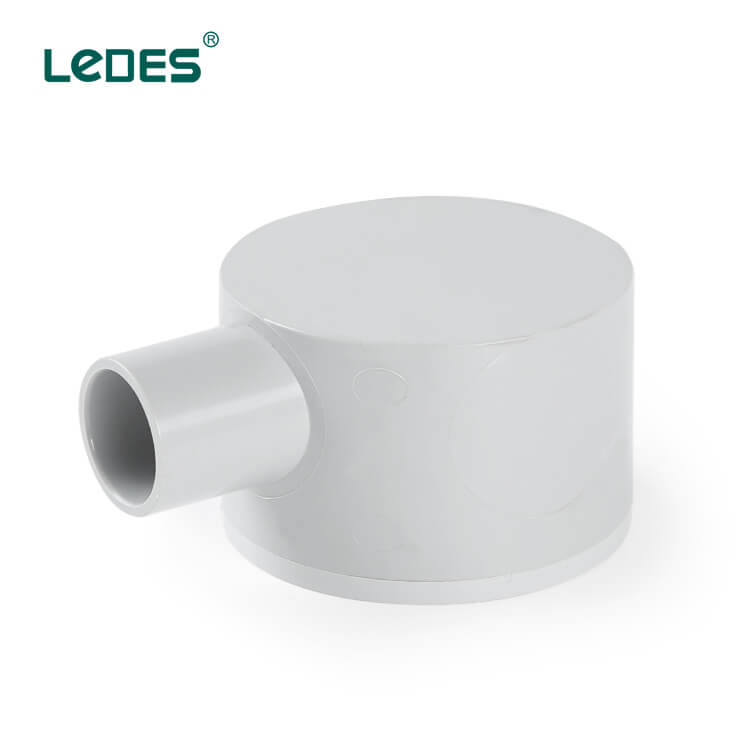

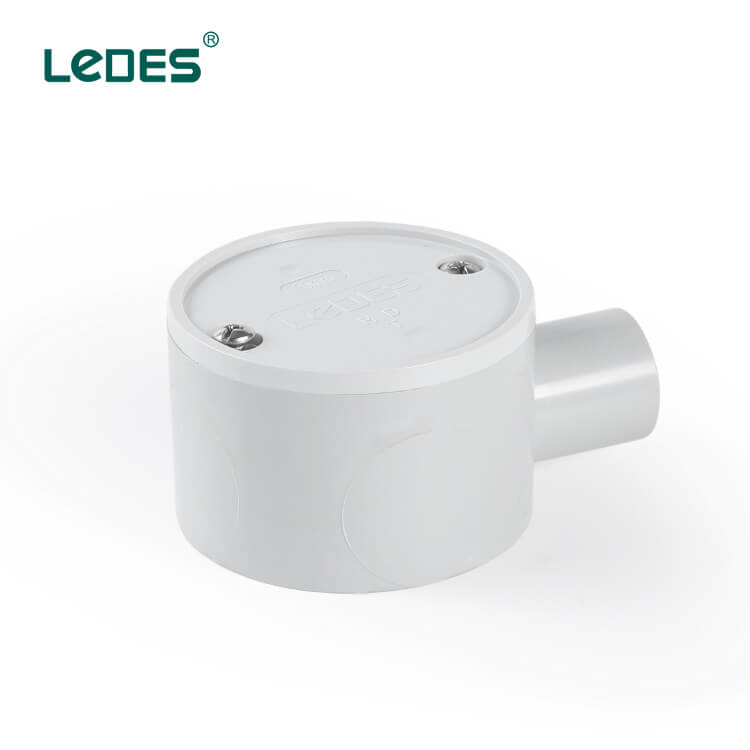

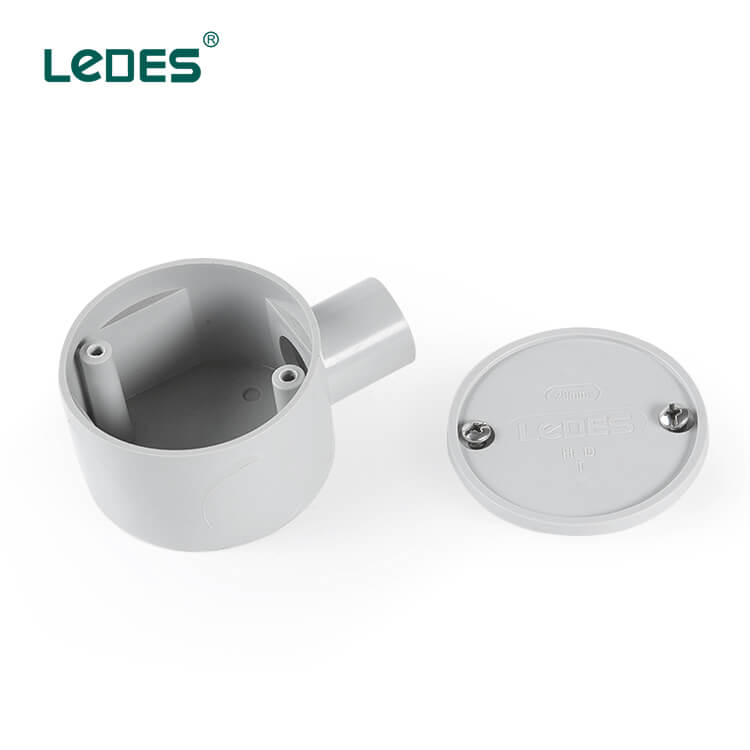

Ledes Weatherproof Electrical Junction Box Outdoor Surface Mount J Box 1 Way Shallow - Grey

Compatible Standard

AS/NZS 2053

Light Ageing Test UV

EN 61386

UL94

ISO 9001:2015

Ledes - Solar Conduit for Solar Panel & Power Project

Features

UV Resistance. Extreme UV exposure performance, perfect match with outdoor installation and suitable for extremely harsh conditions.

Non – Metallic J Box. Electronic & heat insulation, light weight, long lasting and rustproof. Which are pros comparing with metallic shallow junction box.

High Fire Rating. Up to V0 fire rated means the flame will self-extinguishing in 5s after cut off the source of fire for provided the best protection for your home & office.

2nd Gen J Box. ‘Easy to open’ lid designed, strengthened fixed screw column and the original opening position is reserved and more.

Trusted Partner. 15+ huge construction projects core supplier over the world and services hundreds of companies in US & CA & AU & UAE & SA.

Full Customized Service. Not only size and colour of products, but we can offer total solutions for your project based on our rich industry experience.

Overview

Ledes solar PVC conduit boxes are perfect match outdoor used and solar power generation equipment. Compared with ordinary PVC electrical connection box, it significantly improves the stability under exposure conditions or extreme harsh conditions outdoor for make sure long-term stable use.

Ordinary PVC electrical single gang box is prone to fading and cracking when exposed to the sunlight or UV for a long time, which will expose the wires inside the pipe to sand or sunlight, then accelerating aging. However, once the insulation layer on the surface of the wire is aged, it is very easy to cause a short circuit and other dangerous situations.

We have tested hundreds of formulations in the process of making PVC industrial junction box, and selected the most stable formulations for mass production to ensure the quality of the products. Moreover, our quality department will randomly check the finished products before leaving the factory, and carry out 150+ hours of UV testing and stability testing items to ensure that they are correct before they are delivered to customers.

Whether you are using it for interior decoration or industrial engineering projects, it can match your project perfect.

Product Description

Why You Need AS/NZS 2053 & IEC Certified PVC Electrical Junction Box?

UV Resistance

Considering the large-scale installation of solar power project installed in outside, you need reliable electrical conduit boxes to protect the fragile wires from damage. Then the professional solar junction box is your best choice.

Non - Metallic J Boxes

In addition to lightweight and cost effective, plastic shallow junction box are also rust-proof and insulated. Once the wire tube rusts after long-term use, and then corrodes the wire, it may cause injury to people.

V0 Grade Flame Resistance

Ledes conduit junction box with UL 94V-0 fire resistance rating can be self-extinguished in 5s after cutting off the fire source, significantly improving the safety of life and property.

2nd Gen J Box

‘Easy to open’ lid designed, strengthened fixed screw column and the original opening position is reserved allowing you to installed easily.

Performance

Raw Material

PVC

Color Selection

Grey

Number of Entries

1 Way

Waterproof Rating

IP65

Temperature Range

-15℃ to +105℃ (5 to 221℉)

Electrical Characteristics

Electrical Insulated

Fire Rating

V0

Resistance to UV

Extreme Resistance to UV Radiation

Cover Attachment

Screwed

Properties

ITEM NO

Type

INNER PACKING

OUTER PACKING

UNIT

QTY

UNIT

QTY

LE-SJB20-1

¢20

BOX

10

CTN

160

LE-SJB20-2

¢20

BOX

10

CTN

130

LE-SJB20-2R

¢20

BOX

10

CTN

130

LE-SJB20-3

¢20

BOX

10

CTN

100

LE-SJB20-4

¢20

BOX

10

CTN

90

LE-SJB25-1

¢25

BOX

10

CTN

150

LE-SJB25-2

¢25

BOX

10

CTN

120

LE-SJB25-2R

¢25

BOX

10

CTN

120

LE-SJB25-3

¢25

BOX

10

CTN

100

LE-SJB25-4

¢25

BOX

10

CTN

90

LE-SJB32-1

¢32

BOX

10

CTN

130

LE-SJB32-2

¢32

BOX

10

CTN

110

LE-SJB32-2R

¢32

BOX

10

CTN

100

LE-SJB32-3

¢32

BOX

10

CTN

80

LE-SJB32-4

¢32

BOX

10

CTN

70

Remarks: can be customized thickness and color
