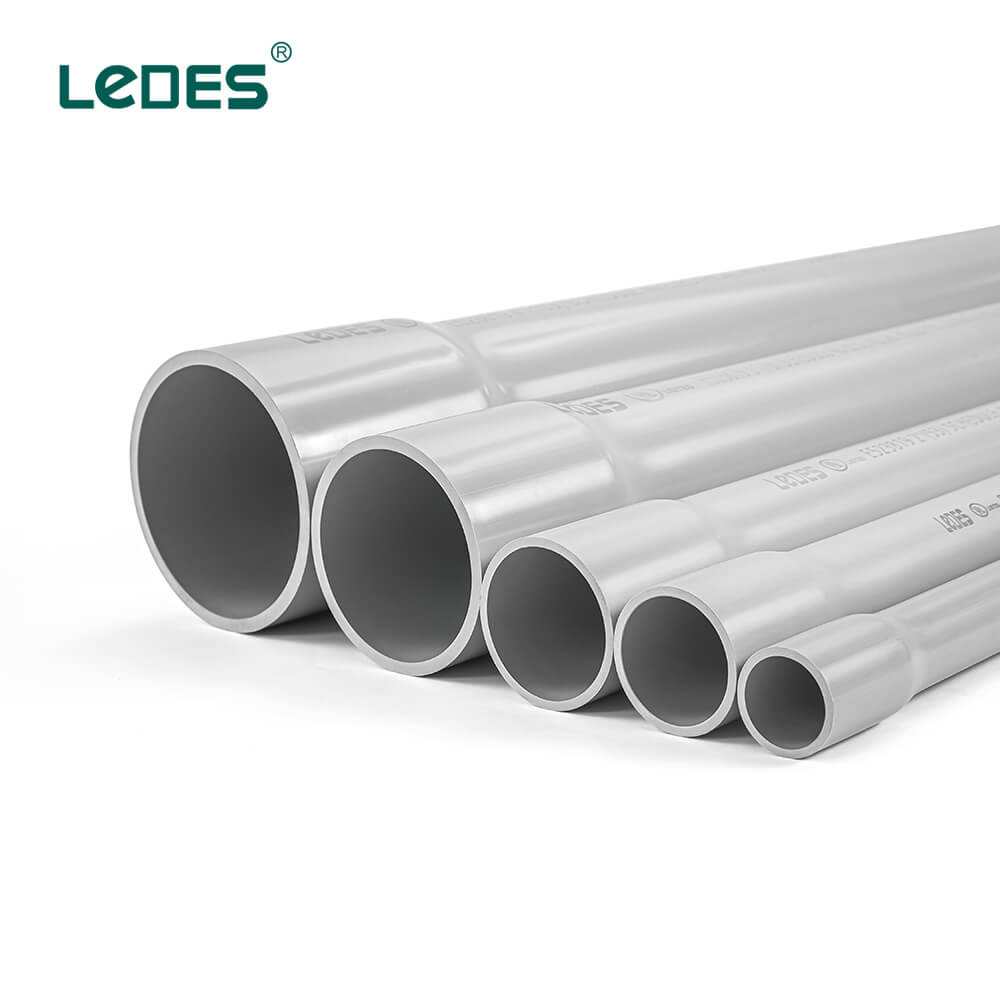

Ledes Schedule 40 PVC Electrical Conduit Pipe UL Listed Sch 40 Tube 10ft - Grey
Ledes Schedule 40 PVC Electrical Conduit Pipe UL Listed Sch 40 Tube 10ft - Grey
Ledes Schedule 40 PVC Electrical Conduit Pipe UL Listed Sch 40 Tube 10ft - Grey
Ledes Schedule 40 PVC Electrical Conduit Pipe UL Listed Sch 40 Tube 10ft - Grey

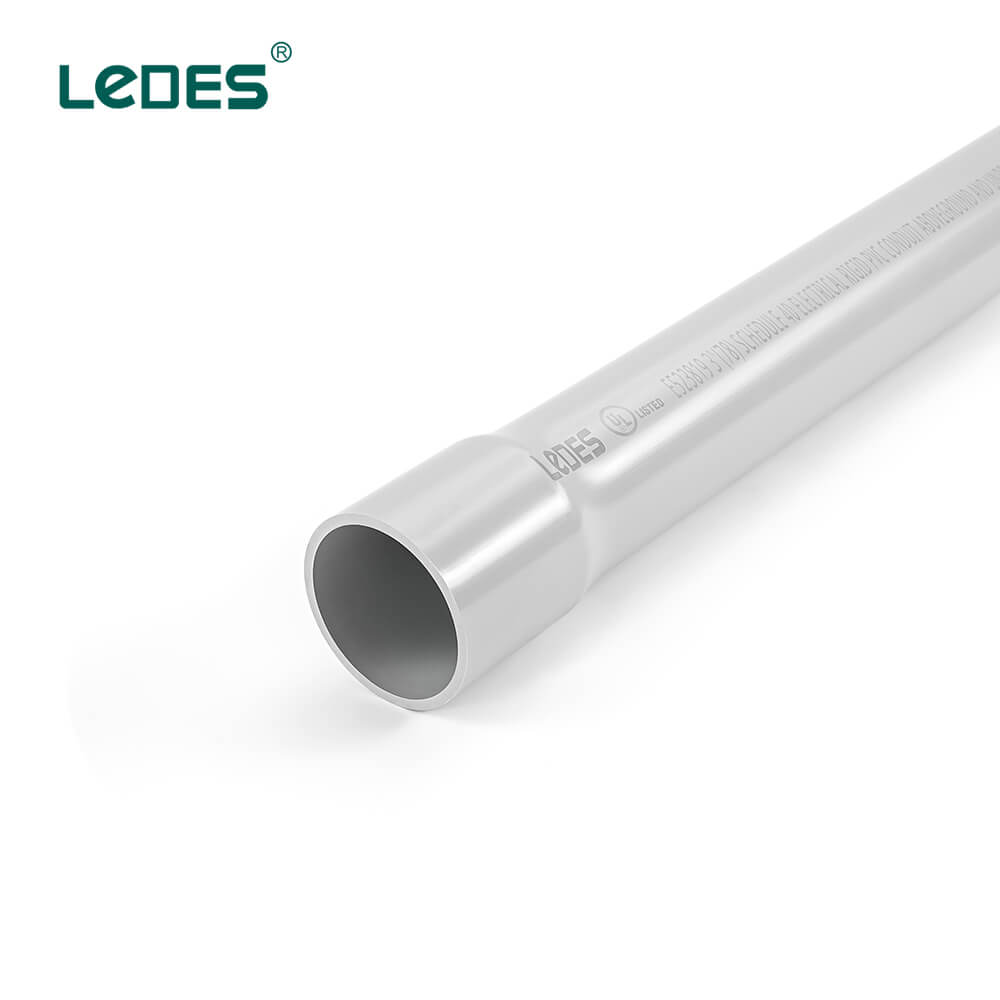

Ledes Sch 40 Solar Rigid Conduit Electrical PVC Pipe Plastic Power Wiring Duct- Grey

Compatible Standard:

UL651

Light Aging Test UV

IEC 61386

UL94

Ledes - Solar Conduit for Solar Panel & Power Project

Features

UV Resistance. Extreme UV exposure performance, perfect match with outdoor installation and suitable for extremely harsh conditions.

Non – Metallic Conduit. Electronic & heat insulation,light weight,long lasting and rustproof. Which are pros comparing with metallic electrical conduit.

High Fire Rating. Up to V0 fire rated means the flame will self-extinguishing in 5s after cut off the source of fire for provided the best protection for your home & office.

Extreme Resistance to Compression & Impact. Up to 5,000 psi Tensile Strength & -15 to +105℃ working temp.

Trusted Partner. 15+ huge construction projects core supplier over the world and services hundreds of companies in US & CA & AU & UAE & SA.

Full Customized Service. Not only size and colour of products, but we can offer total solutions for your project based on our rich industry experience.

Overview

Ledes solar sch 40 electrical pipes are perfect match outdoor used and solar power generation equipment. Compared with ordinary PVC electrical conduits, it significantly improves the stability under exposure conditions or extreme harsh conditions outdoor for make sure long-term stable use.

Ordinary PVC electrical wire pipes are prone to fading and cracking when exposed to the sunlight or UV for a long time, which will expose the wires inside the pipe to sand or sunlight, then accelerating aging. More importantly, once the insulation layer on the surface of the wire is aged, it is very easy to cause a short circuit and other dangerous situations.

We have tested hundreds of formulations in the process of making PVC electrical pipes, and selected the most stable formulations for mass production to ensure the quality of the products. Moreover, our quality department will randomly check the finished products before leaving the factory, and carry out 150+ hours of UV testing and stability testing items to ensure that they are correct before they are delivered to customers.

Whether you are using it for interior decoration or industrial engineering projects, it can match your project very well.

Product Description

Why You Need AS & IEC Certified Schedule 40 PVC Solar Rigid Conduit?

UV Resistance

Considering the large-scale installation of solar power project installed in outside, you need reliable electrical conduits to protect the fragile wires from damage. Then the professional sch 40 solar conduit pipe is your best choice.

Non - Metallic Conduit

In addition to lightweight and cost effective, plastic sch 40 solar electrical conduit pipes are also rust-proof and insulated. Once the wire tube rusts after long-term use, and then corrodes the wire, it may cause injury to people.

High Fire Rating

Ledes schedule 40 solar panel conduit with UL 94V-0 fire resistance rating can be self-extinguished in 5s after cutting off the fire source, significantly improving the safety of life and property.

Super Resistance to Compression & Impaction

Up to 5,000 psi tensile strength & -15 to +105℃ working temp make you more convenient during construction, and you don’t need to worry about cracking and damage caused by quality problems of  electrical solar conduit on roof during used

Performance

Tensile Strength

5,000 psi (3.45 kN/cm2)

Resistance to Impact

Less Than 3 of 1/32 inch Cracks & Tears

Temperature Range

-15 to +105℃ (5 to 221℉)

Resistance to Bending

Rigid

Electrical Characteristics

Electrical Insulated

Fire Rating

UL 94V-0

Extrusion

Fusion

Resistance to UV:

Extreme Resistance to UV Radiation

Corrosion Resistant

Yes

Properties



Products Code

Size

Avg.OD(in)

Avg.ID(in)

Min T(in)

LE-SRCS40A

1/2

0.840

0.578

0.109

LE- SRCS40B

3/4

1.050

0.780

0.113

LE- SRCS40C

1

1.315

1.004

0.133

LE- SRCS40D

1-1/4

1.660

1.335

0.140

LE- SRCS40E

1-1/2

1.900

1.564

0.145

LE- SRCS40F

2

2.375

2.021

0.154

LE- SRCS40G

2-1/2

2.875

2.414

0.203

LE- SRCS40H

3

3.500

3.008

0.216

LE- SRCS40I

3-1/2

4.000

3.486

0.226

LE- SRCS40J

4

4.500

3.961

0.237

LE- SRCS40K

5

5.563

4.975

0.258

LE- SRCS40L

6

6.625

5.986

0.280

LE- SRCS40M

8

8.625

7.853

0.322



Remarks: can be customized thickness and color
