Certifications
UL 651
ASTM 1784-20, ASTM D648-18
ASTM D635-18, ASTM D256-10
ASTM E1252-98, ASTM D638-14

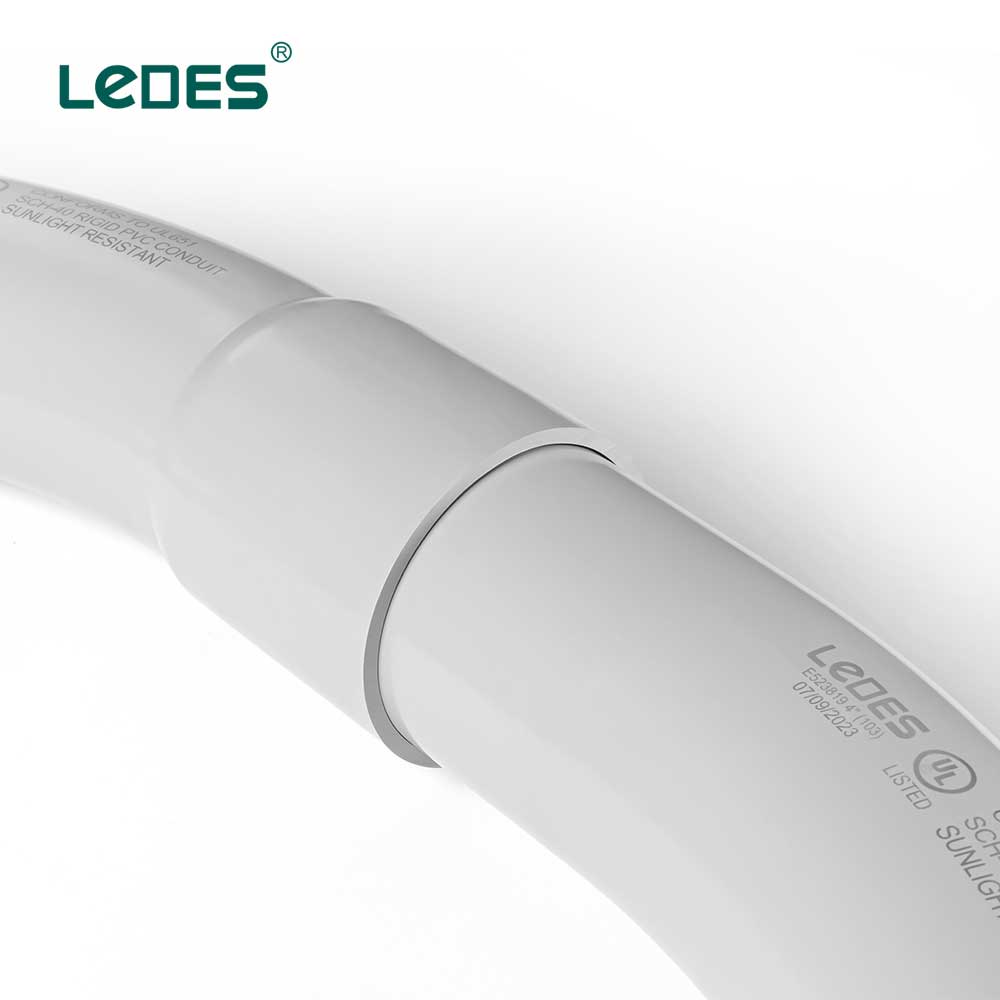

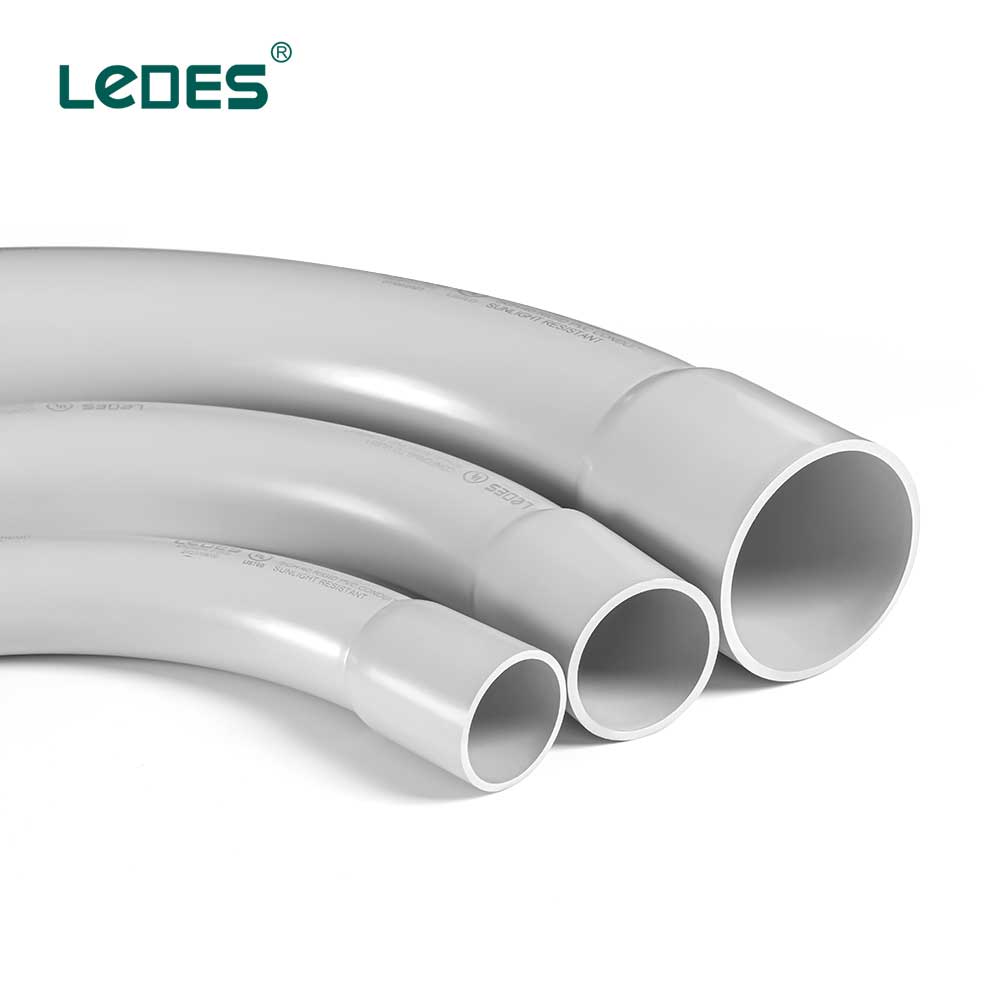

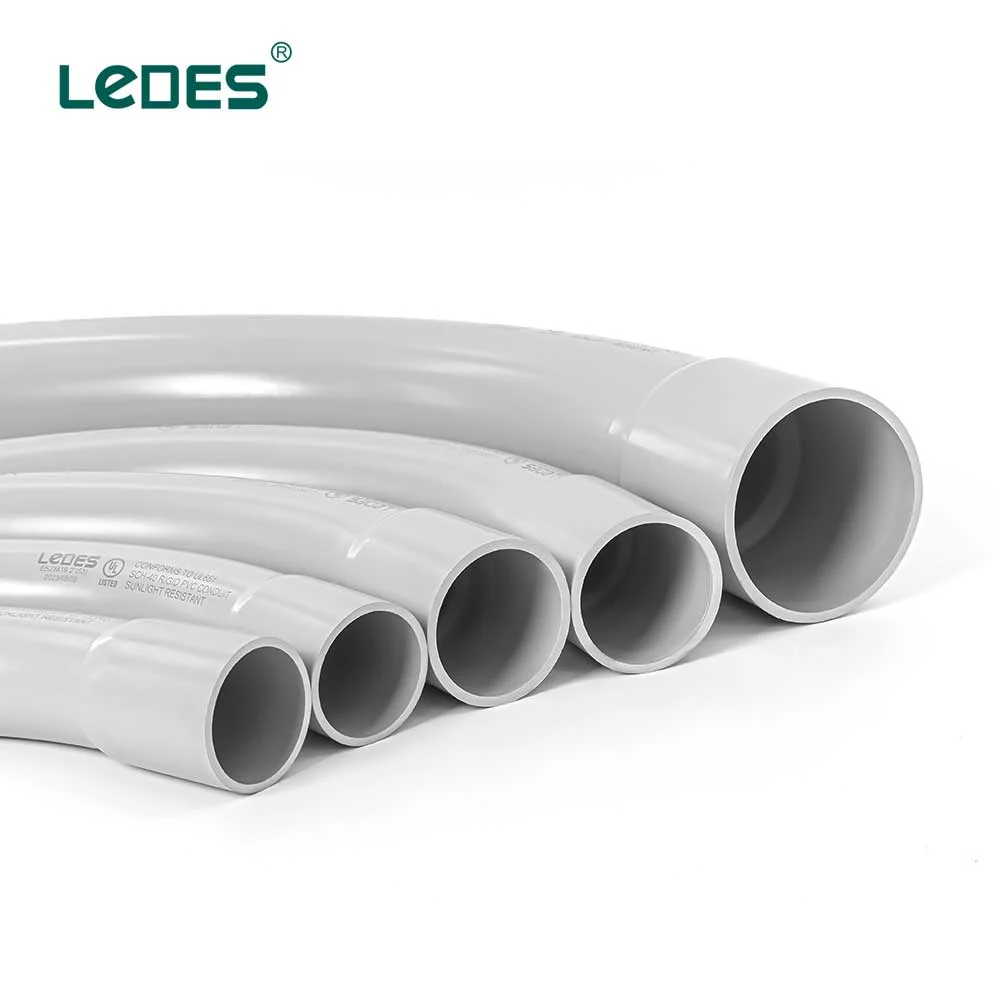

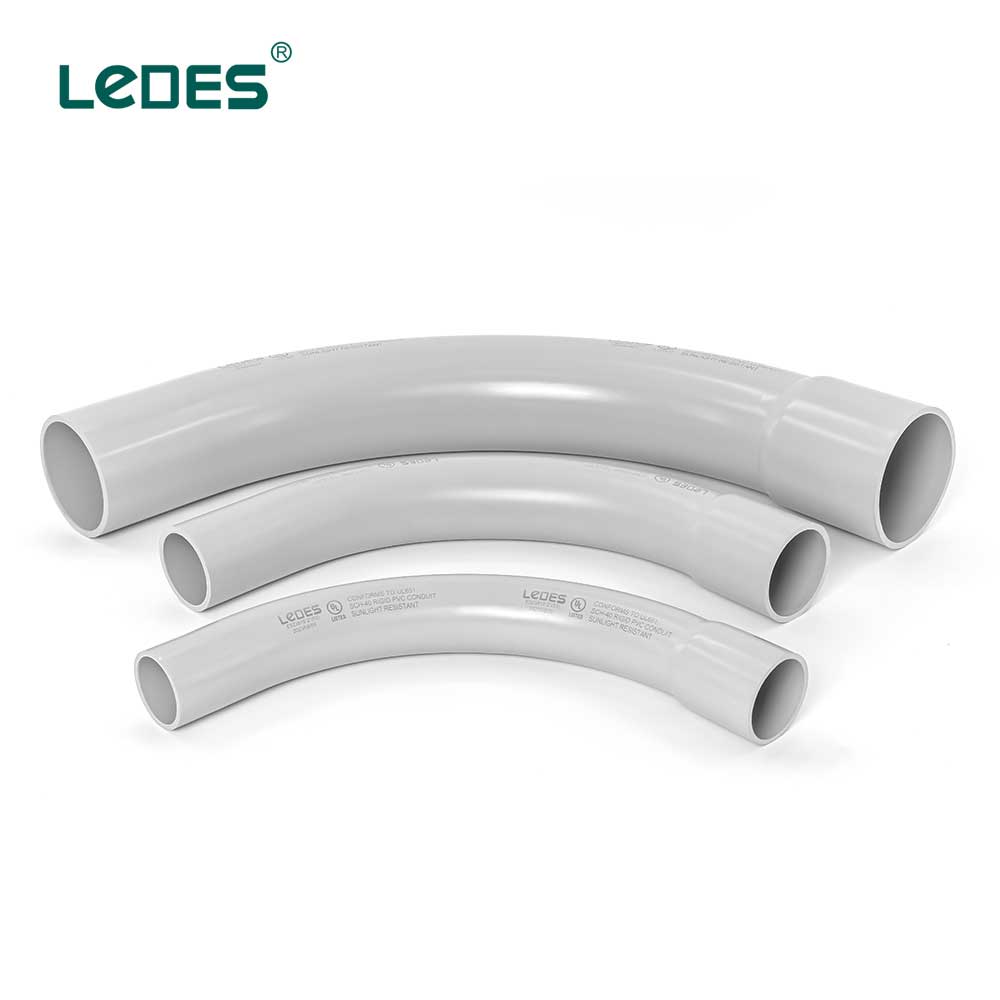

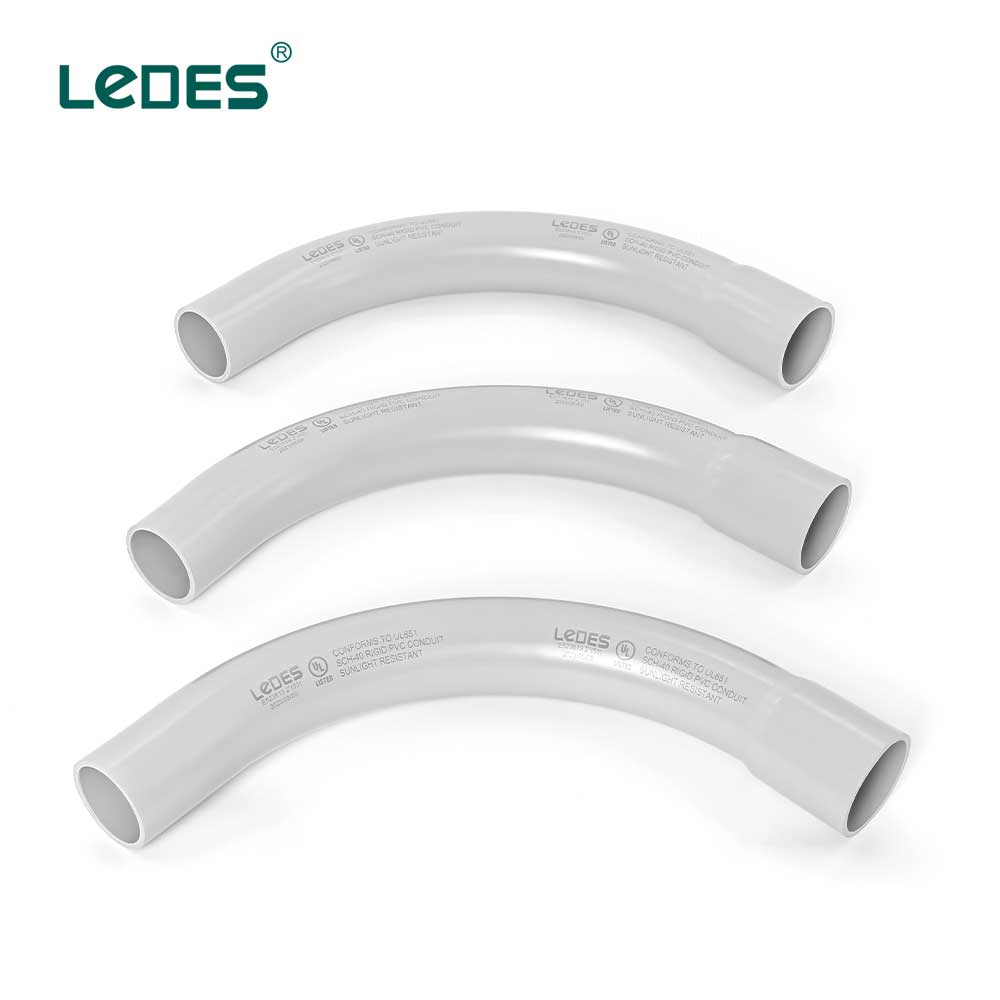

UL LISTED. Choose Ledes for your next project with our UL-Certified Schedule 40 & 80 PVC electrical conduit 90-degree sweep elbows, expertly designed for seamless integration. Inquire today for further details and a personalized quote.
Branded Excellence. This product, fashioned from 100% new materials, showcases superior quality with its sleek design, featuring seamless interiors and exteriors for hassle-free cable management.
Optimal Fire Protection. With a UL 94V-0 fire rating, you can trust in unmatched safety for your home and building. This rating ensures there’s no flame spread when the fire source is removed, offering essential peace of mind.
Non-Metallic Fittings. Say goodbye to corrosion, heat, fire, and sunlight damage with Sch 40 and 80 PVC conduit fittings. These non-metallic elbows offer superior resistance to these elements, ensuring a longer lasting and more reliable electrical system.
Trusted Partner. Boasting over 15 years as core suppliers for global construction projects and serving over 1,000 satisfied clients across the US, CA, AU, UAE, and SA, we’re your trusted source for outstanding service and quality.
A conduit bend is the most common conduit fitting used to change direction or transfer electrical wires from wall to ceiling. These elbow bends come in various specifications such as 22.5°, 45°, and 90°.
Ledes, a renowned manufacturer of PVC electrical conduit pipes in China, has been spearheading the development of PVC electrical pipes for over 14 years. Currently, Ledes is the 1st PVC electrical pipe manufacturer in China to achieve UL & CSA certification, solidifying its position as a trusted and innovative leader in the industry.
To cater to customers worldwide, Ledes has revolutionized its offerings with a new generation of customized services. These encompass not only standard colors and wall thicknesses but also encompass meticulous matching design and mold production capabilities. Through this 100% project-oriented approach, Ledes empowers customers to meet their project requirements perfectly.
Beyond their impressive credentials, Ledes has revolutionized the customer experience by introducing a new generation of customized services. Forget about the limitations of regular colors and wall thicknesses – Ledes goes beyond the ordinary to offer precisely tailored solutions to meet your project needs. From matching design and mold production to meticulous attention to detail, Ledes is committed to exceeding your expectations and driving your project forward to completion.
Contact Ledes to claim your free sample in today!
WHY YOU NEED UL LISTED SCHEDULE 40 & 80 PVC CONDUIT BEND?
Confidence in Quality & Compliance with Ledes Electrical Sweep Elbow.
Our Schedule 40 & 80 PVC electrical conduit bend and accessories:
Trust Ledes for reliable electrical installations that exceed industry standards.
Effortless Electrical Installation with Ledes PVC Elbows.
Get the most out of your electrical installation with our premium 100% brand-new PVC Sch 40 & 80 electrical PVC pipe bends:
Experience a smooth and efficient electrical installation with Ledes.
Experience Unparalleled Fire Safety with Ledes Electrical Fittings.
Our electrical fittings are engineered with safety in mind:
Choose Ledes for the highest standards in electrical safety.
Discover Superior Safety with Ledes Plastic Conduit Elbows.
Enjoy peace of mind with our lightweight and affordable plastic conduit elbows:
Upgrade your electrical installations with the innovative safety of Ledes.
Weatherproof Your Electrical Projects with Ledes.
Keep your outdoor electrical infrastructure reliable and vibrant with:
Experience the ultimate protection for your outdoor electrical installations.
Bending Load | Up to 4,448N (1000 lbf) |
Resistance to Crushing | Up to 166.7 lbf per linear |
Heat-distortion | ﹤15% with No Cracking |
Water Absorption | ﹤0.50% Weight |
Flammability Test | Less Than 5 Seconds Continue to Flame |
Extrusion/molding-process Test | No Flaking or Cracking |
Fire Rating | UL 94V-0 |
Permanency of Printing | Yes |
Rust & Sunlight Resistant | Yes |
Color | Grey or Customization |
Material | PVC |
Customized Services | Available |
Place of Origin | Dongguan, China |
Shipping | By Sea |
Samples | Available |
Dimensions | 1 to 8 inch |
Markings
Markings shall be permanent, legible, and visible after the product is installed. The following types
of markings or the equivalent are considered permanent:
Standard for Marking and Labeling Systems, UL 969.
Size(in) | Item No. | A(in) | B(in) | R(in) |
1 | LE-SWS90C | 1.315 | 1.875 | Customization |
1-1/4 | LE-SWS90D | 1.660 | 2.000 | Customization |
1-1/2 | LE-SWS90E | 1.900 | 2.000 | Customization |
2 | LE-SWS90F | 2.375 | 2.000 | Customization |
2-1/2 | LE-SWS90G | 2.875 | 3.000 | Customization |
3 | LE-SWS90H | 3.500 | 3.125 | Customization |
3-1/2 | LE-SWS90I | 4.000 | 3.250 | Customization |
4 | LE-SWS90J | 4.500 | 3.375 | Customization |
5 | LE-SWS90K | 5.563 | 3.625 | Customization |
6 | LE-SWS90L | 6.625 | 3.750 | Customization |
8 | LE-SWS90M | 8.625 | 6.500 | Customization |
Remarks: Size & Color & Radius can be customized
Price List
Get the full price list now by contact our sales team.
15+ major projects globally, such as The CHPE, A.B.Brown Station, Abu Dhabi UAE Al Dhafra PV2 Project, Melbourne Metro Tunnel, Macau Island Hospital project, and more.
We are proudly the first UL and CSA Certified electrical conduit pipe and fittings supplier in China; we boast an array of certifications, including ASTM, IEC, AS/NZS, ROHS, CE, and ISO.
Ledes would like to connect with customers face-to-face, that’s why we participate in many exhibitions. For example, we have participated in the IBS exhibition in Las Vegas many times, as well as the Canton Fair. In the future, we look forward to seeing you at the show!
Ledes is a professional PVC electrical conduit and fittings factory, and we have two different facilities located in China. Our product is UL, CSA, ASTM, IEC, AS/NZS, ROHS, and CE certified.
Yes, Ledes offers fully customized services for electrical conduits and fittings. Not only the color and size, we can customize based on your construction project.
Different size of conduit has different MOQs; if you talk about PVC conduit, it is generally 3,000 meters to 5,000 meters (9,850 ft to 16,500 ft), depending on size.
The general L/D is 15 – 30 days, but it depends on your quantity.
We shipped goods to Guangzhou or Shenzhen port. Let us know if you have any special requests.
We accept 30% T/T pre-paid, and the rest 70% needs to be paid before shipment.
Yes, we support sample services; contact us to claim your sample today!
You can contact us in 3 different ways: submit the contact form, send an email, or send us WhatsApp messages.
