Compatible Standard
IEC61386-1, IEC61386-21
EN50267-2, IEC60754-1
IEC61034-2, ASTM E662
ISO4589-2, ISO19700, UL94

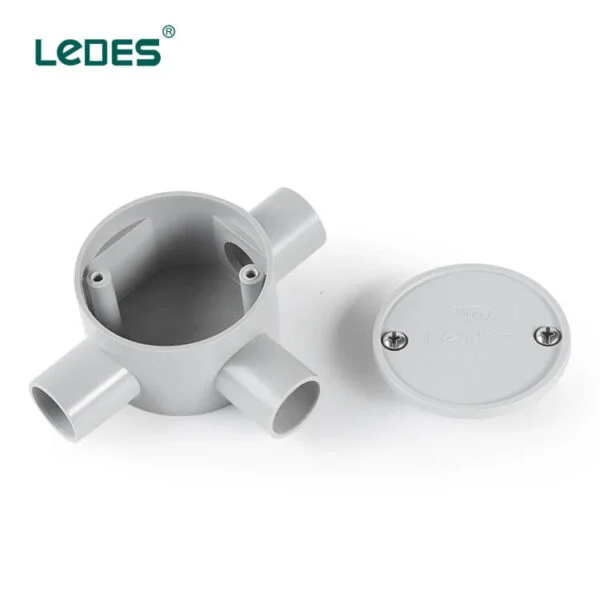

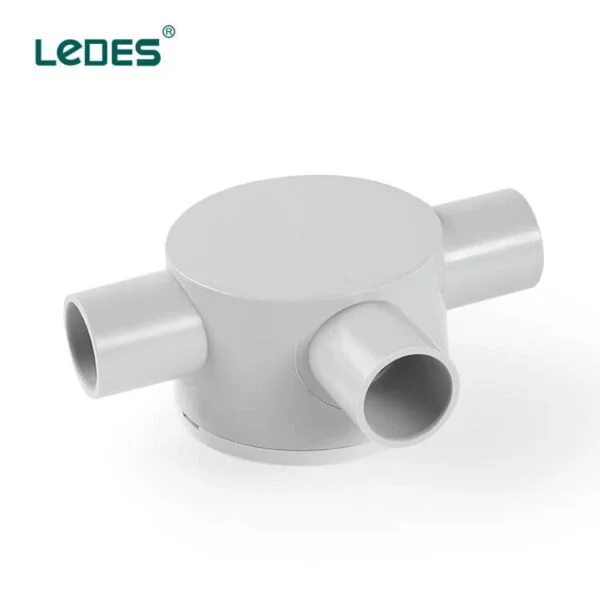

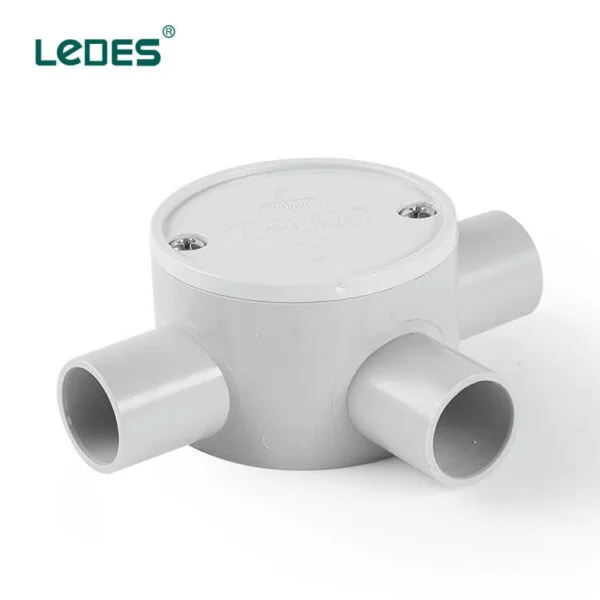

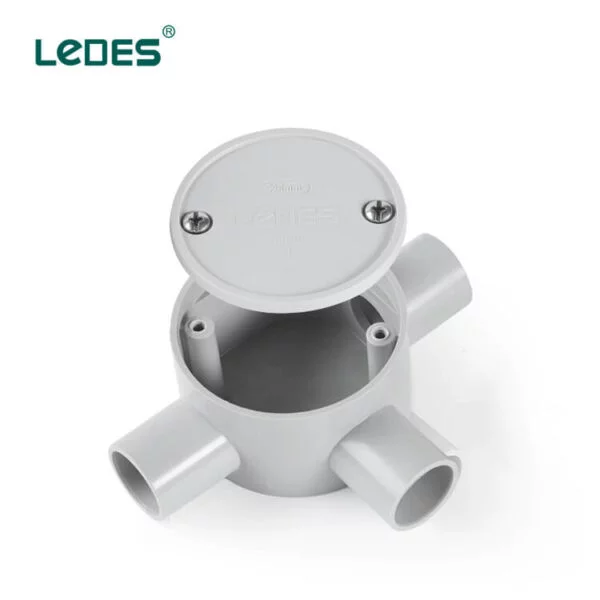

LSZH Junction Box. The new generation electrical pipe & fittings will greatest protect your personnel safety in case of fire, and halogen-free materials are more environmentally friendly than general PVC junction boxes.
High Flame Retardant Rating. V0 fire rated means the flame will self-extinguishing in 5s after cut off the source of fire for provided the best protection for your home & office.
UV Resistance. Extreme UV Exposure, perfect match with outdoor installation and suitable for extremely harsh weather conditions.
Excellent Performance. -45 to +150℃ (-49 to 302℉) working temperature & IP65 waterproof rating & weatherproof.
Trusted Partner. 15+ huge construction projects core supplier over the world and services hundreds of companies in US & CA & AU & UAE & SA.
Full Customized Service. Not only size and colour of products, but we can offer one-stop solutions for your project based on our rich industry experience.
What is LSHF Electrical Plastic Conduit & Fitting?
LSHF electrical conduit pipe & j box are new released industry conduit pipe fittings which means low smoking & halogen free products. Comparing with general electrical PVC pipe & fittings, LSZH pipes series are not only reduce the emitted black smoke and toxin such as halogen after burning, and increase the possibility of survival of the trapped persons in the fire, but also it widely welcomed by consumers around the world after launched for the halogen-free material is more environmentally friendly, it has been applied espically in hospitals, schools, government departments decoration.
Some of countries such as Australia, Chile have passed legislation to mandate that LSZH pipe series must be used during building decoration to ensure safety and protect the environment.
Why You Need AS & IEC Certified LSZH J box is Most Popular in the World?
A large amount of black smoke is generated when the general PVC plastic electric conduit box is burned,which is not conducive to the evacuation of the on-site personnel and the rescue operation by firemen.The LSZH electrical box can effectively alleviate this problem and increase the probability of escape for trapped persons.
PVC junction box contain halogen in general, which not only emit large amount of black smoke when burning, but also is very bad for environmental protection because halogens are toxic and harm your health.
The LSZH electrical plastic junction box with V0 fire resistance rating can be self extinguished in 5s after cutting off the fire source,which greatly improved the safety of life and property.
Great UV resistance performance for outdoor installed purpose and keep long last life for save your money.
-45 to +150℃ (-49 to 302℉) working temperature & IP65 waterproof rating plastic electrical box.
‘Easy to Open’ design with stain steel screws for rust-proof for durable used.
Raw Material | Halogen Free Thermoplastic |
Colors | White/Black/Grey |
Number of Entries | 3 Way |
Waterproof Rating | IP65 or Above |
Temperature Range | -45 to +150℃ (-49 to 302℉) |
Electrical Characteristics | Electrical Insulated |
Fire Rating | V0 |
Ageing Resistance | UV Stabilized |
Halogen Free | PH value is 9.0, conductivity value is 9.9 μs/cm |
Low Smoke | The minimum light transmittance within 40 minutes: 68.97% |
Conduit Alignment | Yes |
Cover Attachment | Screwed |
Products Code | Type | Width(mm) | Height(mm) | Packing |
LE-HFSJB20-1 | ￠20 | 64 | 43 | 140 |
LE-HFSJB20-2 | ￠20 | 64 | 43 | 140 |
LE-HFSJB20-V | ￠20 | 64 | 43 | 112 |
LE-HFSJB20-3 | ￠20 | 64 | 43 | 112 |
LE-HFSJB20-4 | ￠20 | 64 | 43 | 140 |
LE-HFSJB25-1 | ￠25 | 64 | 43 | 140 |
LE-HFSJB25-2 | ￠25 | 64 | 43 | 84 |
LE-HFSJB25-V | ￠25 | 64 | 43 | 84 |
LE-HFSJB25-3 | ￠25 | 64 | 43 | 84 |
LE-HFSJB25-4 | ￠25 | 64 | 43 | 84 |
LE-HFSJB32-1 | ￠32 | 64 | 43 | 130 |
LE-HFSJB32-2 | ￠32 | 64 | 43 | 110 |
LE-HFSJB32-2R | ￠32 | 64 | 43 | 100 |
LE-HFSJB32-3 | ￠32 | 64 | 43 | 80 |
LE-HFSJB32-4 | ￠32 | 64 | 43 | 70 |
Remarks: can be customized thickness and color
Price List
Get the full price list now by contact our sales team.
15+ major projects globally, such as The CHPE, A.B.Brown Station, Abu Dhabi UAE Al Dhafra PV2 Project, Melbourne Metro Tunnel, Macau Island Hospital project, and more.
We are proudly the first UL and CSA Certified electrical conduit pipe and fittings supplier in China; we boast an array of certifications, including ASTM, IEC, AS/NZS, ROHS, CE, and ISO.
Ledes would like to connect with customers face-to-face, that’s why we participate in many exhibitions. For example, we have participated in the IBS exhibition in Las Vegas many times, as well as the Canton Fair. In the future, we look forward to seeing you at the show!
Ledes is a professional PVC electrical conduit and fittings factory, and we have two different facilities located in China. Our product is UL, CSA, ASTM, IEC, AS/NZS, ROHS, and CE certified.
Yes, Ledes offers fully customized services for electrical conduits and fittings. Not only the color and size, we can customize based on your construction project.
Different size of conduit has different MOQs; if you talk about PVC conduit, it is generally 3,000 meters to 5,000 meters (9,850 ft to 16,500 ft), depending on size.
The general L/D is 15 – 30 days, but it depends on your quantity.
We shipped goods to Guangzhou or Shenzhen port. Let us know if you have any special requests.
We accept 30% T/T pre-paid, and the rest 70% needs to be paid before shipment.
Yes, we support sample services; contact us to claim your sample today!
You can contact us in 3 different ways: submit the contact form, send an email, or send us WhatsApp messages.
