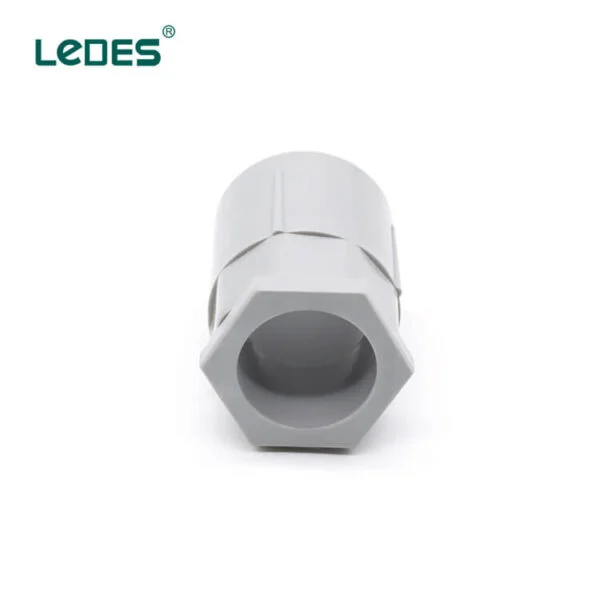

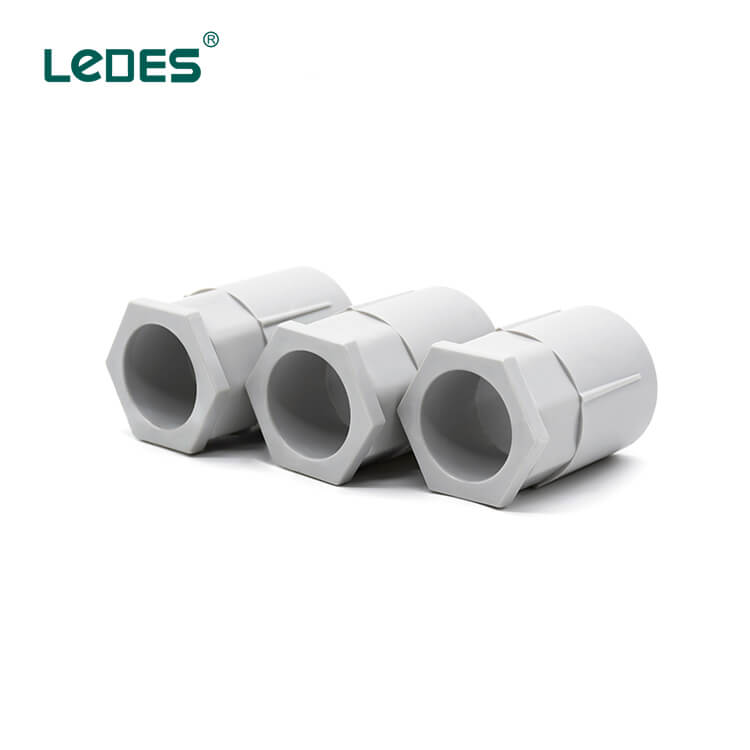

Ledes LSZH Adaptor with Lock Nut Conduit Accessories Grey

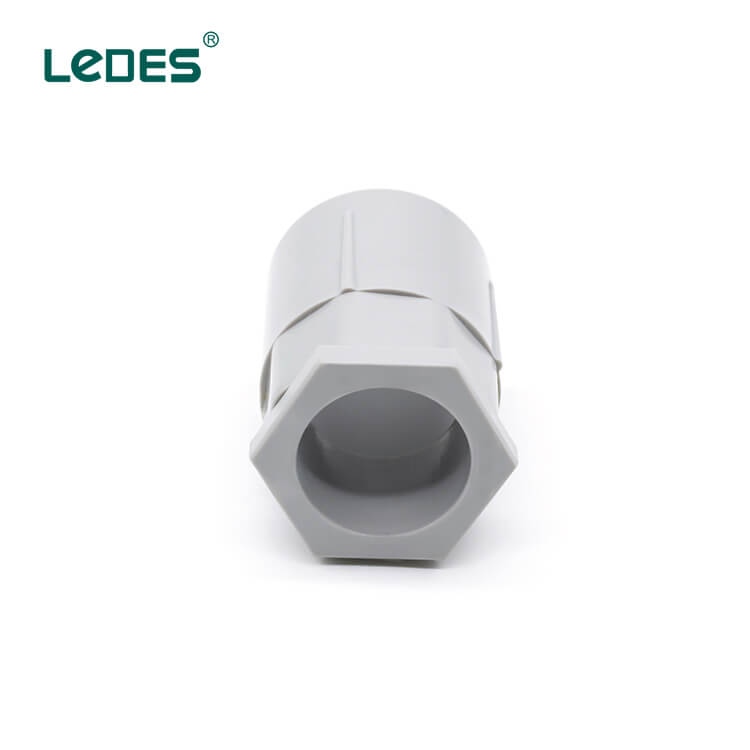

Ledes conduit adapter electrical fittings conduit manufacturers peru chile columbia hongkong brazil malta factory supplier price

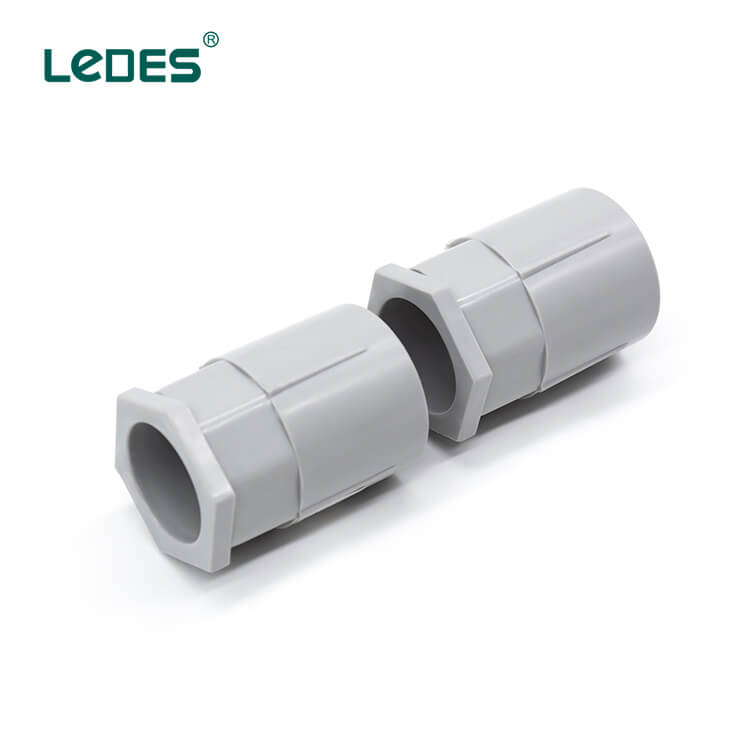

Ledes halogen free male adapter with lock nut plastic fittings factory supplier manufacturer wholesaler australian new zealand peru chile spain columbia singapore

Ledes PVC Adaptor with Lock Nut LSZH Electrical Accessories

Compatible Standard

IEC61386-1, IEC61386-21

EN50267-2, IEC60754-1

IEC61034-2, ASTM E662

ISO4589-2, ISO19700, UL94

Features

LSZH Adaptors. Stepping into a new era of electrical fittings designed to ensure unmatched safety for personnel in case of fire. Crafted from halogen-free materials, these adaptors offer a greener alternative to standard PVC electrical pipes and fittings, prioritizing both the planet and people.

High Flame Retardant Rating. Our UL94V-0 fire-rated products ensure flames self-extinguish within 5 seconds after removing the fire source, delivering top-notch protection for both your home and office.

UV Resistance. Designed to withstand extreme UV exposure, our products are the perfect choice for outdoor installations, ensuring durability and performance in even the most severe weather conditions.

Outstanding Durability. Offering a broad working temperature range from -45 to +150°C (-49 to 302°F), coupled with an IP65 waterproof rating, our products guarantee exceptional performance in all weather conditions.

Reliable Partner. As a trusted core supplier for over 15 major construction projects globally, we proudly serve thousands of companies across the U.S., Canada, Australia, UAE, and Saudi Arabia.

Tailored Service Solutions. We provide complete customization, not limited to product size and color, but also offer one-stop project solutions drawing on our extensive industry expertise.

Overview

Discover the Versatility of LSZH Electrical Adaptors!

Meet your perfect connection solution – our superior LSZH plastic adaptors, designed to seamlessly join PVC conduits to a range of accessories like socket back boxes, distribution boards, and electrical conduit pipes.

Our newly introduced LSOH electrical pipe connector distinguishes itself as an industry game-changer with its low smoke and halogen-free properties. Unlike traditional PVC fittings, the LSHF conduit adapter significantly reduces smoke and toxic halogen emissions when burned, enhancing the chance of survival in fire situations. Plus, our halogen-free material technology is a favorite among environmentally-conscious consumers worldwide, making it especially beneficial for hospitals, schools, government departments, and home enhancements.

As China’s premier supplier of electrical conduit pipes, Ledes has been moulding the industry for over 14 years. We rank as the first CSA approved & UL Certified supplier in China, with additional accreditations including ASTM, IEC, AS/NZS, ROHS, and CE.

More than just our impressive credentials, Ledes takes customer satisfaction to a new level by providing a fresh stint of customizable services. Break free from average colors and standard wall thickness – we offer you precisely tailored solutions to address your project specifics. Ledes’ commitment spans from matching design and mold production to meticulous detail work, endeavoring to exceed your expectations and ensuring your project’s successful completion.

Get in touch with Ledes to claim your free sample today, and let’s build something extraordinary together!

Product Description

Why You Need AS/NZS 2053 & IEC Certified LSZH Conduit Adapter?

Low Smoke

Enhanced Safety and Efficiency with Ledes Electrical Box Connectors.

Our LSZH electrical box adapters offer:

Reduced smoke generation for safer evacuation.
Efficient electrical connections and installations.
Increased safety and efficiency for your projects.

Connect seamlessly with Ledes box connectors!

Halogen Free

Eco-Friendly and Reliable Electrical Male Adapters with Ledes.

Our PVC-free male adapters eliminate halogen emissions, prioritizing:

Environmental sustainability and safety.
Exceptional reliability and performance.
Protection for both electrical systems and the planet.

Choose Ledes for sustainable and reliable electrical solutions!

V0 Grade Flame Resistance

Enhanced Fire Protection for Electrical Pipe Installations with Ledes Pipe Fittings.

Our LSZH electrical pipe fittings are engineered with a UL94V-0 fire rating for:

Fast self-extinction in 5 seconds.
Reliable protection for sensitive electrical components.
Increased safety for people and property.

Stay safe with reliable electrical pipe fittings from Ledes!

UV Resistance

Reliable and Affordable Electrical Protection for Outdoor with Ledes.

Our electrical conduit adaptor offers exceptional UV resistance, ensuring:

Protection for outdoor installations from UV rays.
Increased lifespan for cost-effectiveness.
Peace of mind and reliable performance.

Invest in long-lasting and affordable outdoor electrical protection with Ledes!

Excellent Performance

Flexible and Reliable Electrical Fittings with Ledes Conduit Adaptor.

Our electrical adapter offer:

Wide temperature range for adaptability to diverse environments.
IP65 waterproof rating for reliable protection.
Flexible design for easy installation and adjustment.

Choose Ledes for flexible and reliable electrical bending!

Performance

Ageing Resistance	UV Stabilized
Temperature range	-45 to +150℃ (-49 to 302℉)
Waterproof Rating	IP65 or Above
Raw Material	Halogen Free Thermoplastic
Color selection	White/Black/Grey
Electrical Characteristics	Electrical Insulated
Fire Rating	UL94V-0
Halogen free	PH value is 9.0, conductivity value is 9.9 μs/cm
Low smoke	The minimum light transmittance within 40 minutes: 68.97%
Low smoke to ASTM E662	Not less than 95.3 at 60 seconds
Oxygen index	Not less than 39.2%

Properties

Products Code	Type	OD(mm)	ID(mm)	Packing
LE-HFA20	￠20	25.2	20.2	1000
LE-HFA25	￠25	32.2	25.2	720
LE-HFA32	￠32	39.2	32.2	360
LE-HFA40	￠40	47.2	40.2	210
LE-HFA50	￠50	57.2	50.2	120

Remarks: can be customized thickness and color
