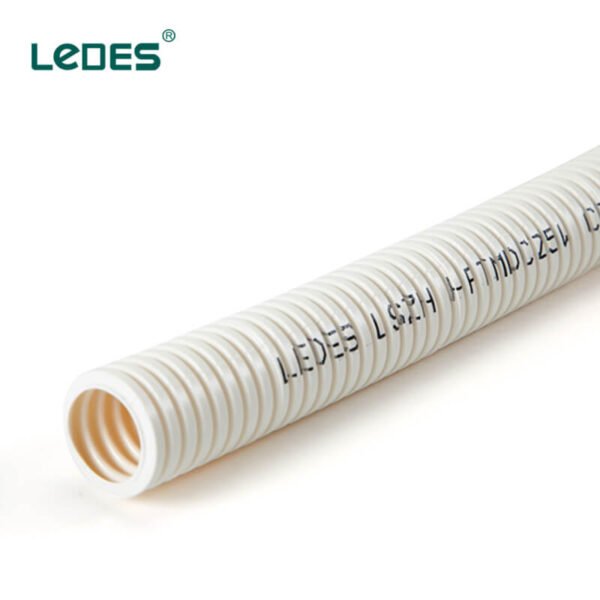

Ledes LSZH Electrical Conduit ENT Flexible Cable Wiring Piping MD Corrugated Halogen Free Conduits- White

Compatible Standard



IEC61386-1, IEC61386-21

EN50267-2, IEC60754-1

IEC61034-2, ASTM E662

ISO4589-2, ISO19700, UL94

Features

What is LSZH Electrical Plastic Conduit Product?

LSZH corrugated conduit is new released electrical conduit of industry which means low smoking & halogen free. Comparing with general PVC pipe, LSZH pipes not only reduce the emitted black smoke and toxin such as halogen after burning, and increase the possibility of survival of the trapped persons in the fire, but also it widely welcomed by consumers around the world after launched for the halogen-free material is more environmentally friendly, it has been applied espically in hospitals, schools, government departments decoration.

Some of countries such as Australia, Chile have passed legislation to mandate that LSZH series pipes must be used during building decoration to ensure safety and protect the environment.

Overview

What is LSZH Electrical Plastic Conduit & Fitting?

LSZH electrical conduit & J box are new released industry conduit pipe fittings which means low smoking & halogen free products. Comparing with general electrical PVC pipe & fittings, LSZH pipes series are not only reduce the emitted black smoke and toxin such as halogen after burning, and increase the possibility of survival of the trapped persons in the fire, but also it widely welcomed by consumers around the world after launched for the halogen-free material is more environmentally friendly, it has been applied espically in hospitals, schools, government departments decoration.

Some of countries such as Australia, Chile have passed legislation to mandate that LSZH pipe series must be used during building decoration to ensure safety and protect the environment.

Product Description

Why LSZH Corrugated Conduit is Most Popular in the World?

Low Smoke

A large amount of black smoke is generated when the general PVC plastic corrugated flexible electric pipe is burned,which is not conducive to the evacuation of the on-site personnel and the rescue operation by firemen.The LSZH electrician pipe can effectively alleviate this problem and increase the probability of escape for trapped persons.

Halogen Free

PVC pipes contain halogen in general, which not only emit large amount of black smoke when burning, but also is very bad for environmental protection because halogens are toxic and harm your health.

V0 Grade Flame Resistance

The LSZH corrugated electrical pipe with V0 fire resistance rating can be self extinguished in 5s after cutting off the fire source,which greatly improved the safety of life and property.

UV Resistance

Excellent UV resistance performance for outdoor installed purpose and keep long last life for save your money.

Super Resistance to Compression & Impaction

Up to 750Nt /5cm (Compression) and 6 Joule (Impaction) make you more convenient during construction, and you don’t need to worry about cracking and damage caused by quality problems of electrical pipes during used.

Performance



Resistance to Compression

750Nt/5cm

Resistance to Impact

6J

Temperature Range

-45 to +150℃ (-49 to 302℉)

Grade

Medium Duty

Resistance to Bending

Flexible

Electrical Characteristics

Electrical Insulated

IP Ingress Protection

Waterproof

Fire Resistance Rate

V0

Resistance to Insulation

>1000MΩ, 2000V~no breakdown

Colors

White/Black/Grey



Properties

Raw MaterialHalogen Free Thermoplastic
Ageing ResistanceUV Stabilized
Halogen FreePH Value is 9.0, Conductivity value is 9.9 μs/cm
Low SmokeThe Minimum Light Transmittance within 40 Minutes: 68.97%
Low Smoke to ASTM E662Not Less Than 95.3 at 60 seconds
Oxygen IndexNot less Than 39.2%



Specification



Products Code

Type

OD(mm)

Min ID(mm)

Packing

LE-HFMDCW20

¢20

20

14.1

Customized

LE-HFMDCW25

¢25

25

18.3

Customized

LE-HFMDCW32

¢32

32

24.3

Customized

LE-HFMDCW40

¢40

40

31.2

Customized

LE-HFMDCW50

¢50

50

39.6

Customized

LE-HFMDCW63

¢63

63

50.6

Customized





Remarks: can be customized thickness and color
