Compatible Standard
IEC61386-1, IEC61386-21
EN50267-2, IEC60754-1
IEC61034-2, ASTM E662
ISO4589-2, ISO19700, UL94

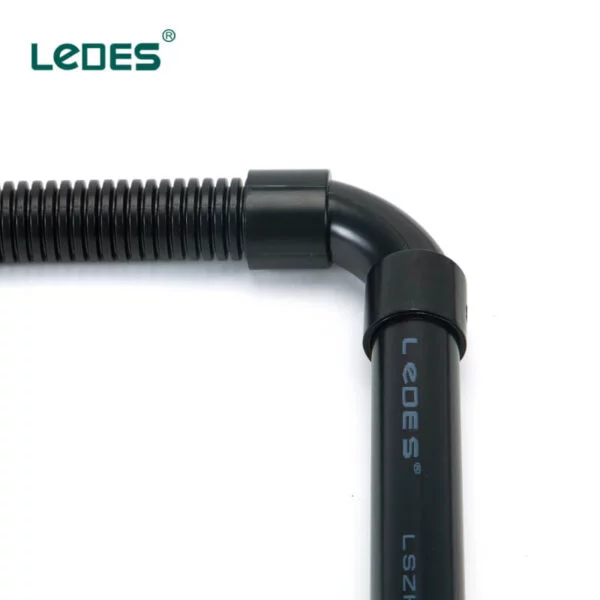

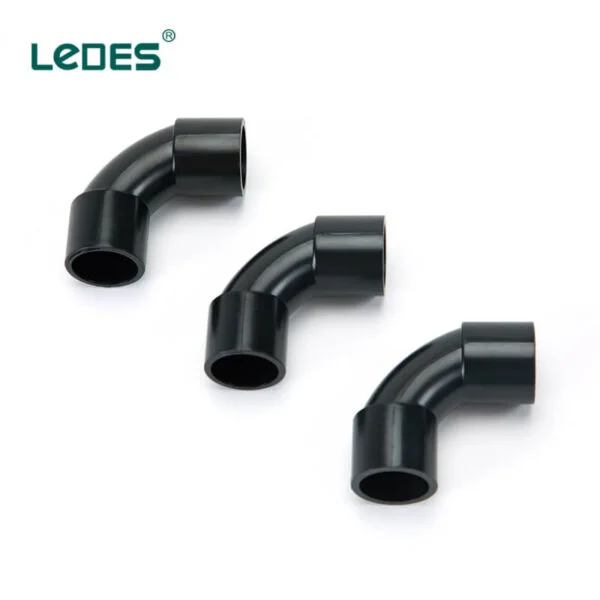

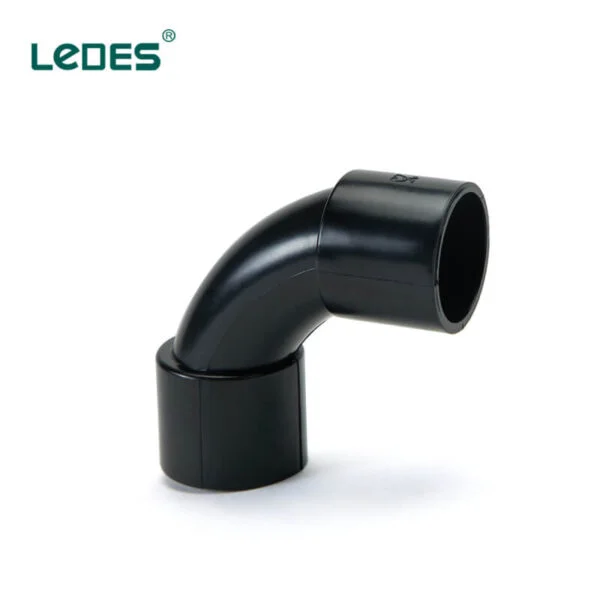

Featuring today, the LSZH Elbow. This cutting-edge component of our electrical pipe and fittings line ensures utmost personal safety in the event of a fire. Crafted from halogen-free plastic, it not only delivers a high degree of integrity but is also a friendlier choice for our environment when compared to the traditional PVC conduit elbow. Opt for the LSZH Elbow, and make an environmentally-conscious choice without compromising safety.
High Fire Rating Solution. Certified with a UL94V-0 fire rating, it ensures that flames self-extinguish within 5 seconds after the fire source is removed, offering top-tier protection for both your home and office. Rest easy knowing you’re fully shielded with the best.
UV Resistance. Engineered for extreme UV exposure, our product is the perfect accompaniment for outdoor installations. Not only that – it’s also robust enough to withstand the most severe weather conditions. Bring home the right match for outdoor durability and resilience.
Excellent Performance. Designed to work flawlessly in temperatures ranging from -45 to +150℃ (-49 to 302℉), it can handle it all. Plus, with an IP65 waterproof rating, it remains unaffected by water and weather conditions. So, no matter what the elements throw your way, be assured our product will continue to deliver.
Your Reliable Ally in Construction. As the core supplier for over 15 major global construction projects, our reputation precedes us. Servicing thousands of satisfied clients across the US, Canada, Australia, the UAE, and Saudi Arabia, we play a pivotal role in building the future. Trust us to be the foundation of your success.
Experience Complete Customization. Our expertise extends beyond offering products in your preferred size and color. Leveraging our deep industry experience, we provide comprehensive solutions tailored specifically to your project. Equip yourself with the power of personalization, and unlock the path to project success with us!
Why You Need IEC & AS/NZS 2053 Certified LSZH Conduit Elbow?
Enhanced Safety and Efficiency with Ledes Electrical Elbows.
Our LSZH electrical elbows offer:
Connect seamlessly and safely with Ledes elbows!
Eco-Friendly and Reliable Electrical Pipe Connectors with Ledes.
Our innovative electrical pipe connectors eliminate halogen emissions, prioritizing:
Choose Ledes for sustainable and reliable electrical solutions!
Enhanced Fire Protection for Electrical Installations with Ledes.
Our LSZH electrical pipe fittings are engineered with a UL94V-0 fire rating for:
Stay safe and efficient with reliable electrical pipe fittings from Ledes!
Reliable and Affordable Electrical Protection for Outdoor with Ledes.
Our electrical conduit offers exceptional UV resistance, ensuring:
Invest in long-lasting and affordable outdoor electrical protection with Ledes!
Flexible and Reliable Electrical Connection with Ledes Elbow.
Our electrical elbow offers:
Choose Ledes for flexible and reliable electrical connection!
Ageing Resistance | UV Stabilized |
Temperature range | -45 to +150℃ (-49 to 302℉) |
Waterproof Rating | IP65 or Above |
Raw Material | Halogen Free Thermoplastic |
Color selection | White/Black/Grey |
Electrical Characteristics | Electrical Insulated |
Fire Rating | UL94V-0 |
Halogen free | PH value is 9.0, conductivity value is 9.9 μs/cm |
Low smoke | The minimum light transmittance within 40 minutes: 68.97% |
Low smoke to ASTM E662 | Not less than 95.3 at 60 seconds |
Oxygen index | Not less than 39.2% |
Products Code | Type | OD(mm) | ID(mm) | Packing |
LE-HFCE20 | ￠20 | 23.5 | 20.2 | 700 |
LE-HFCE25 | ￠25 | 28.5 | 25.2 | 400 |
LE-HFCE32 | ￠32 | 37.2 | 32.2 | 170 |
Remarks: can be customized thickness and color
Price List
Get the full price list now by contact our sales team.
15+ major projects globally, such as The CHPE, A.B.Brown Station, Abu Dhabi UAE Al Dhafra PV2 Project, Melbourne Metro Tunnel, Macau Island Hospital project, and more.
We are proudly the first UL and CSA Certified electrical conduit pipe and fittings supplier in China; we boast an array of certifications, including ASTM, IEC, AS/NZS, ROHS, CE, and ISO.
Ledes would like to connect with customers face-to-face, that’s why we participate in many exhibitions. For example, we have participated in the IBS exhibition in Las Vegas many times, as well as the Canton Fair. In the future, we look forward to seeing you at the show!
Ledes is a professional PVC electrical conduit and fittings factory, and we have two different facilities located in China. Our product is UL, CSA, ASTM, IEC, AS/NZS, ROHS, and CE certified.
Yes, Ledes offers fully customized services for electrical conduits and fittings. Not only the color and size, we can customize based on your construction project.
Different size of conduit has different MOQs; if you talk about PVC conduit, it is generally 3,000 meters to 5,000 meters (9,850 ft to 16,500 ft), depending on size.
The general L/D is 15 – 30 days, but it depends on your quantity.
We shipped goods to Guangzhou or Shenzhen port. Let us know if you have any special requests.
We accept 30% T/T pre-paid, and the rest 70% needs to be paid before shipment.
Yes, we support sample services; contact us to claim your sample today!
You can contact us in 3 different ways: submit the contact form, send an email, or send us WhatsApp messages.
