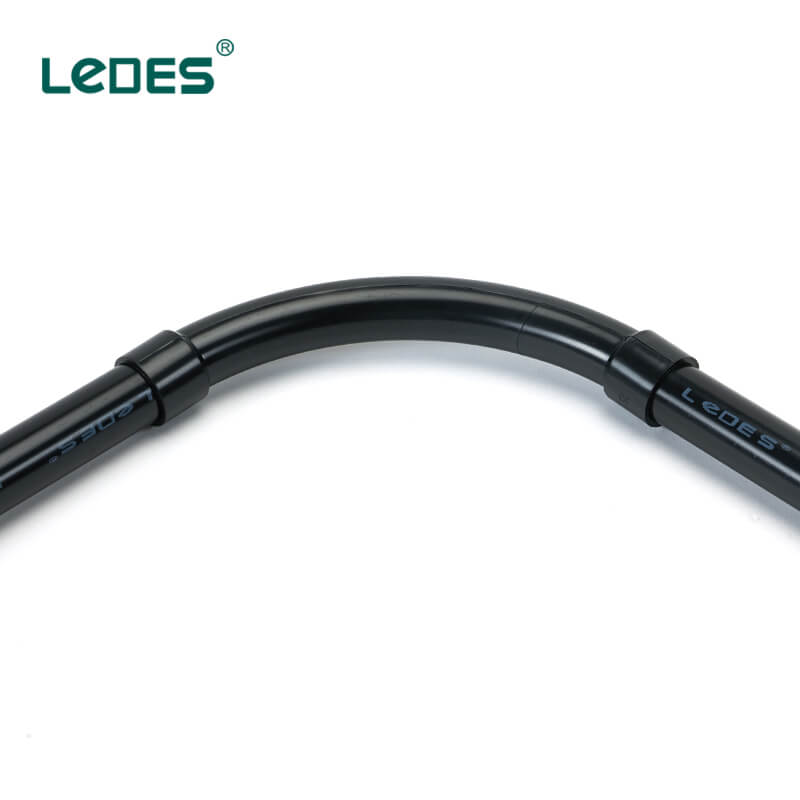

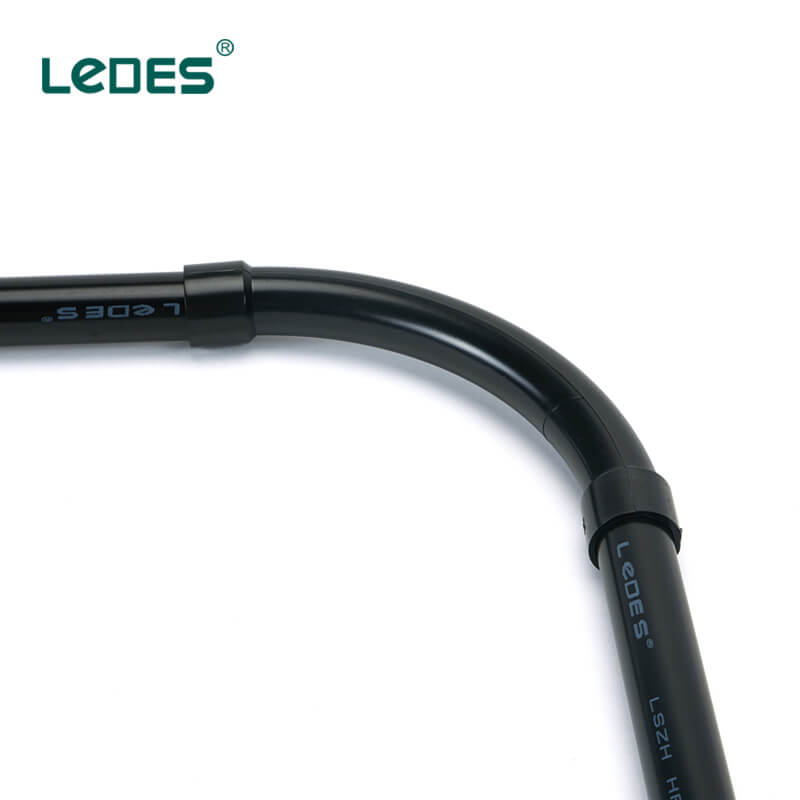

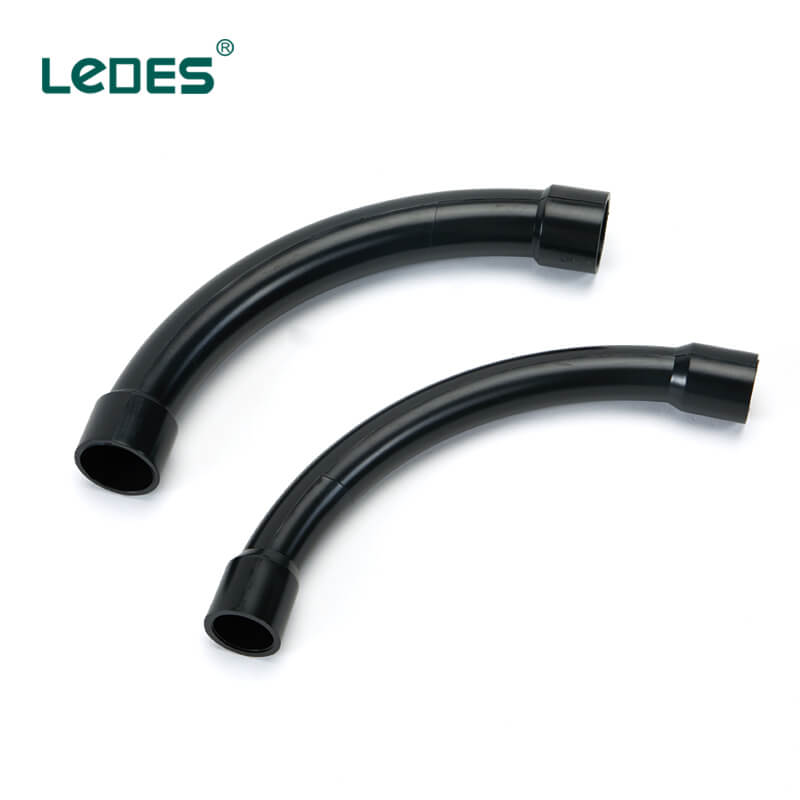

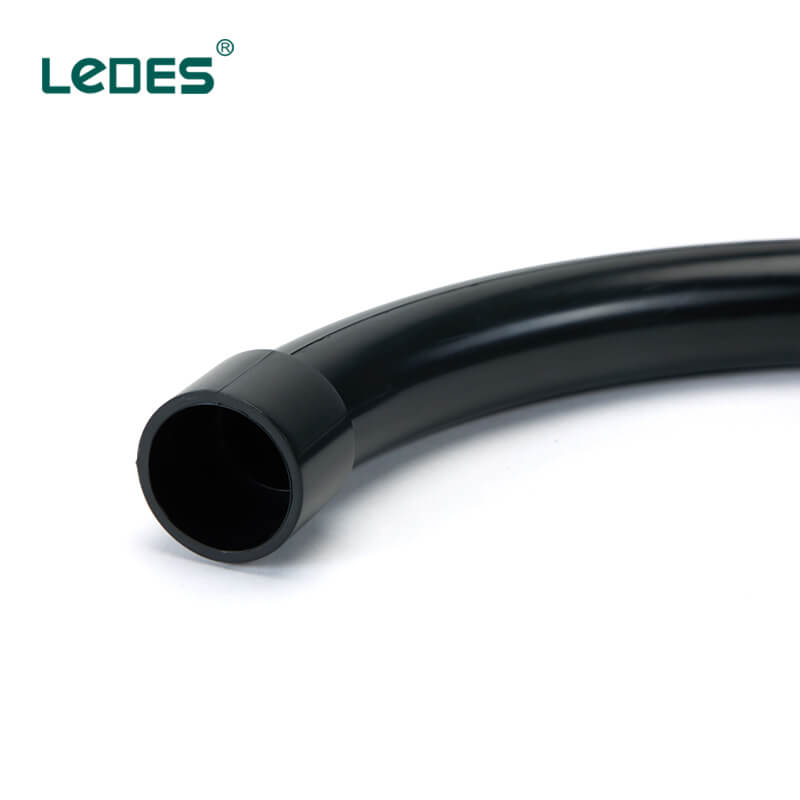

Ledes Electrical Conduit Bend LSZH 45 90 Degree Wiring Pipe Fittings - Black

Compatible Standard



IEC61386-1, IEC61386-21

EN50267-2, IEC60754-1

IEC61034-2, ASTM E662

ISO4589-2, ISO19700, UL94

Features

LSZH Bends. The new generation electrical pipe & fittings will greatest protect your personnel safety in case of fire, and halogen-free plastic materials are more environmentally friendly than general PVC junction boxes.

High Flame Retardant Rating. V0 fire rated means the flame will self-extinguishing in 5s after cut off the source of fire for provided the best protection for your home & office.

UV Resistance. Extreme UV Exposure, perfect match with outdoor installation and suitable for extremely harsh weather conditions.

Excellent Performance. -45 to +150℃ (-49 to 302℉) working temperature & IP65 waterproof rating & weatherproof.

Trusted Partner. 15+ huge construction projects core supplier over the world and services hundreds of companies in US & CA & AU & UAE & SA.

Full Customized Service. Not only size and colour of products, but we can offer one-stop solutions for your project based on our rich industry experience.

Overview

What is LSZH Electrical PVC Cable Conduit & Fitting?

LSZH electrical conduit & bend are new released industry conduit pipe fittings which means low smoking & halogen free products. Comparing with general electrical PVC pipe & fittings, LSZH pipes series are not only reduce the emitted black smoke and toxin such as halogen after burning, and increase the possibility of survival of the trapped persons in the fire, but also it widely recommend by consumers around the world after launched for the halogen-free material is more environmentally friendly, it has been applied espically in hospitals, schools, government departments decoration.

Some of countries such as Australia, Chile have passed legislation to mandate that LSZH pipe series must be used during building decoration to ensure safety and protect the environment.

Product Description

Why You Need AS/NZS 2053 & IEC Certified LSZH Conduit Bend?

Low Smoke

A large amount of black smoke is generated when the general PVC plastic electric conduit bend is burned,which is not conducive to the evacuation of the on-site personnel and the rescue operation by firemen.The LSZH 90 degree bend can effectively alleviate this problem and increase the probability of escape for trapped persons.

Halogen Free

PVC electrical bend contain halogen in general, which not only emit large amount of black smoke when burning, but also is very bad for environmental protection because halogens are toxic and harm your health.

V0 Grade Flame Resistance

The LSZH electrical rigid conduit fittings with V0 fire resistance rating can be self extinguished in 5s after cutting off the fire source,which greatly improved the safety of life and property.

UV Resistance

Great UV resistance performance for outdoor installed purpose and keep long last life for save your money.

Excellent Performance

-45 to +150℃ (-49 to 302℉) working temperature & IP65 waterproof rating conduit bends.

Performance



Resistance to compression

750Nt/5cm

Ageing resistance

UV Stabilized

Color selection

White/Black/Grey

Temperature range

-45 to +150℃ (-49 to 302℉)

Waterproof

IP65 or Above

Raw material

Halogen free thermoplastic

Electrical Characteristics

Electrical Insulated

Resistance to flame propagation

V0



Properties



Products Code

Type

OD

ID

Packing

LE-HFMDB20

¢20

25.2

20.2

180

LE-HFMDB25

¢25

30.0

25.2

135

LE-HFMDB32

¢32

36.5

32.0

100

LE-HFMDB40

¢40

46.4

40.2

35

LE-HFMDB50

¢50

57.2

50.2

28



Remarks: can be customized thickness and color
