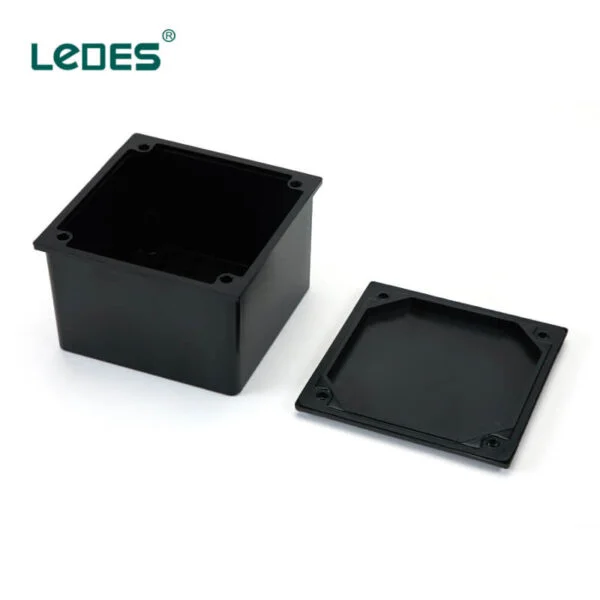

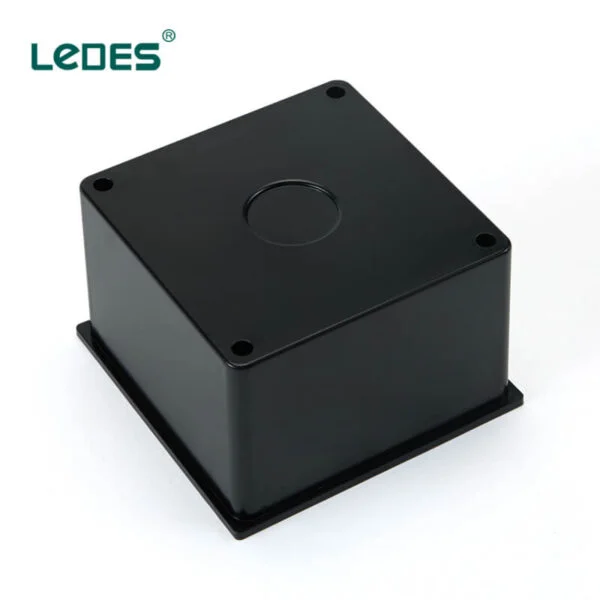

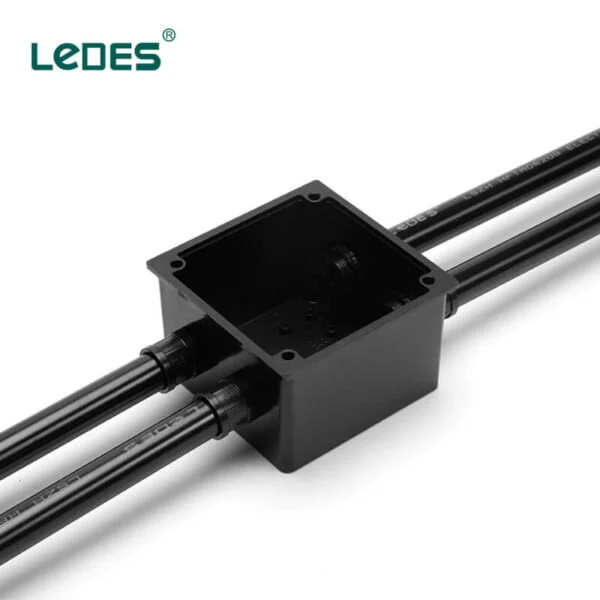

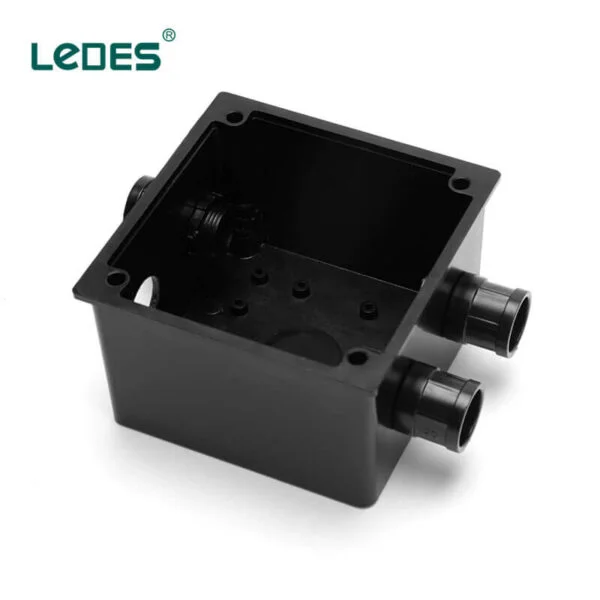

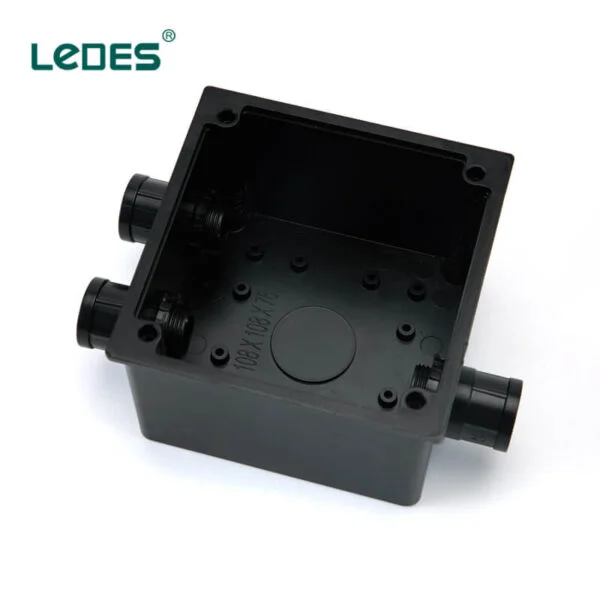

Ledes Black Adaptable Box Electrical Junction Box Waterproof Outdoor for Ceiling Light & Wire

Compatible Standard



IEC61386-1, IEC61386-21

EN50267-2, IEC60754-1

IEC61034-2, ASTM E662

ISO4589-2, ISO19700, UL94

Features

LSZH Electrical Box. The new generation electrical box will greatest protect your safety in case of fire, and halogen-free materials are more environmentally friendly than general PVC adaptable box.

High Flame Retardant. V0 fire rating means the flame will self-extinguishing in 5s after cut off the source of fire for provided the best protection for your home & office.

UV Resistance. Extreme UV Exposure, perfect match with outdoor installation and suitable for extremely harsh outdoor conditions.

Excellent Performance. Works well from -45 to +150℃ (-49 to 302℉) with IP67 waterproof rating.

Trusted Partner. 15+ huge construction projects core supplier over the world and services hundreds of companies in US & CA & AU.

Custom Support. Customization services support with competitive price.

Overview

What is LSZH Electrical Plastic Conduit & Electrical Box Product?

LSZH conncection box is new released electrical conduit & fittings of industry which means low smoking & halogen free. Comparing with general PVC pipe or electrical box, LSZH adaptable box not only reduce the emitted black smoke and toxin such as halogen after burning, and increase the possibility of survival of the trapped persons in the fire, but also it widely welcomed by consumers around the world after launched for the halogen-free material is more environmentally friendly, it has been applied espically in hospitals, schools, government departments decoration or home improvement.

Some of countries such as Australia, Chile have passed legislation to mandate that LSZH series pipes & fittings must be used during building decoration to ensure safety and protect the environment.

Product Description

Why You Need AS & IEC Approved LSOH Black Adaptable Box?

Low Smoke

A large amount of black smoke is generated when the general PVC plastic black junction box is burned,which is not conducive to the evacuation of the on-site personnel and the rescue operation by firemen.The LSZH electrician gang box can effectively alleviate this problem and increase the probability of escape for trapped persons.

Halogen Free

PVC electrical back box contain halogen in general, which not only emit large amount of black smoke when burning, but also is very bad for environmental protection because halogens are toxic and harm your health.

V0 Grade Flame Resistance

The LSZH outside electrical box with V0 fire resistance rating can be self extinguished in 5s after cutting off the fire source,which greatly improved the safety of life and property.

UV Resistance

Great UV resistance performance for outdoor installed purpose and keep long last life for save your money.

Excellent Performance

The working temperature from -45 to +150℃ (-49 to 302℉) with IP67 waterproof rating. The soft PVC sealing ring is anti-aging and can keep good sealing state for a longer time. Stainless steel anti-rust screws are more stable and durable.

Performance



Ageing resistance

UV Stabilized

Temperature Range

-45 to +150℃ (-49 to 302℉)

Raw Material

Halogen Free Thermoplastic

Electrical Characteristics

Electrical Insulated

IP Ingress Protection

IP67

Fire Rating

V0

Colors

White/Black/Grey





Properties



Products Code

Specification

Length(mm)

Width(mm)

Height(mm)

Packing

LE-HFPEB85

85*85*62

85

85

62

96

LE-HFPEB108

108*108*50

108

108

50

63

LE-HFPEB108

108*108*76

108

108

76

45

LE-HFPEB163

163*108*81

163

108

81

42

LE-HFPEB211

211*108*81

211

108

81

18

LE-HFPEB200

200*300*152

200

300

152

4

LE-HFPEB300

200*300*200

200

300

200

4





Remarks: can be customized thickness and color
